137764
Product Name

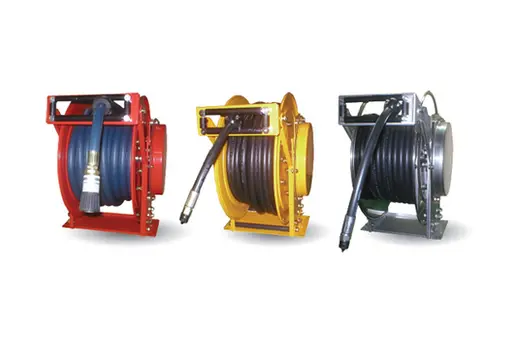

Spring Rewind (ST-Series)
Model Name
ST6-1, ST6-2, ST6-3, ST6-4, ST6-5, ST6-6, ST6-7, ST6-8, ST6-9, ST9-1, ST9-2, ST9-3, ST9-4, ST9-5, ST9-6, ST9-7, ST9-8, ST9-9, ST13-1, ST13-2, ST13-3, ST13-4, ST13-5, ST13-6, ST13-7, ST13-8, ST13-9, ST19-1, ST19-2, ST19-3, ST19-4, ST19-5, ST25-1, ST25-2, ST25-3, ST25-4, ST25-5
Size
-
Weight
-
Product Details
Uses : For Air,Water,Hydraulic,Lubrication etc.
Design & Structure
- Reels are all steel construction and compact design
- All bolted assembly without welding
- Dual frame ,guide plate & ball bearing support.
- Special heat-treatment spring & non-corrosive ratchet.
- 4-way roller assembly.
- Full flow shaft and swivel.
- Standard inlet 90° balanced pressure swivel joint (NBR Packing)
- All(Outlet & inlet) connection threads is female NPT (Other threads can be furnished when you request)
- All materials is carbon steel as standard (Stainless, Aluminum and other materials are available when you request)
Painting : powder coat.
HOSE
- Low pressure hose reels are furnished standard with PVC.
- Medium pressure hose reels are furnished standard with S.A.E 100R1 TYPE AT one wire braid hose.
- High pressure hose reels are furnished standard with S.A.E 100R2 TYPE AT two wire braid hose.
Other specifications are available.
Specification
| Available Hose specifications | Max Pressure | Max Temperature | Rewind Type | Installation | ||
|---|---|---|---|---|---|---|
| Size(Inch) | Hose Material | Length(MR) | ||||
| 1/4inch~1/2inch | PVC(1/TB) | 10MR~50MR | 2900psi/200bar | 212℉ (100℃) | Spring | Floor, Wall, Ceiling |
| Rubber(1W/B) | 30ft~160ft | |||||
| MODEL NO. | HOSE CAPACITY | REEL DIMENSIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D | O.D | LEN GTH | A | B | C | D | E | F | G | H | X | Y | |
| mm inch |
mm inch |
meter feet |
mm inch |
mm inch |
mm inch |
mm inch |
mm inch |
mm inch |
mm inch |
mm inch |
mm inch |
mm inch |
|
| ST6-1 | 6.5 1/4 |
13 0.5 |
10 30 |
220 8.7 |
70 2.7 |
170 6.6 |
110 4.3 |
300 11.8 |
195 8.7 |
325 12.8 |
175 6.9 |
180 7.1 |
70 2.8 |
| ST6-2 | 6.5 1/4 |
13 0.5 |
15 50 |
220 8.7 |
70 2.7 |
170 6.6 |
110 4.3 |
350 13.8 |
195 8.7 |
375 14.8 |
200 7.9 |
180 7.1 |
70 2.8 |
| ST6-3 | 6.5 1/4 |
13 0.5 |
20 70 |
220 8.7 |
70 2.7 |
170 6.6 |
110 4.3 |
350 13.8 |
195 8.7 |
375 14.8 |
200 7.9 |
180 7.1 |
70 2.8 |
| ST6-4 | 6.5 1/4 |
13 0.5 |
25 80 |
270 10.6 |
120 4.7 |
200 7.9 |
110 4.3 |
350 13.8 |
245 9.6 |
375 14.8 |
200 7.9 |
180 7.1 |
70 2.8 |
| ST6-5 | 6.5 1/4 |
13 0.5 |
30 100 |
270 10.6 |
120 4.7 |
200 7.9 |
110 4.3 |
380 15 |
245 9.6 |
405 15.9 |
215 8.5 |
180 7.1 |
70 2.8 |
| ST6-6 | 6.5 1/4 |
13 0.5 |
35 120 |
270 10.6 |
120 4.7 |
300 11.8 |
150 5.9 |
450 17.7 |
245 9.6 |
480 18.9 |
255 10 |
230 9.1 |
110 4.3 |
| ST6-7 | 6.5 1/4 |
13 0.5 |
40 130 |
270 10.6 |
120 4.7 |
300 11.8 |
150 5.9 |
450 17.7 |
245 9.6 |
480 18.9 |
255 10 |
230 9.1 |
110 4.3 |
| ST6-8 | 6.5 1/4 |
13 0.5 |
45 150 |
300 11.8 |
150 5.9 |
300 11.8 |
150 5.9 |
450 17.7 |
275 10.8 |
480 18.9 |
255 10 |
260 10.2 |
110 4.3 |
| ST6-9 | 6.5 1/4 |
13 0.5 |
50 164 |
300 11.8 |
150 5.9 |
300 11.8 |
150 5.9 |
450 17.7 |
275 10.8 |
480 18.9 |
255 10 |
260 10.2 |
110 4.3 |
| ST9-1 | 9.5 3/8 |
16.5 0.6 |
10 30 |
220 8.7 |
70 2.7 |
170 6.6 |
110 4.3 |
300 11.8 |
195 8.7 |
325 12.8 |
175 6.9 |
180 7.1 |
70 2.8 |
| ST9-2 | 9.5 3/8 |
16.5 0.6 |
15 50 |
220 8.7 |
70 2.7 |
170 6.6 |
110 4.3 |
300 11.8 |
195 8.7 |
375 14.8 |
200 7.9 |
180 7.1 |
70 2.8 |
| ST9-3 | 9.5 3/8 |
16.5 0.6 |
20 70 |
290 11.4 |
140 5.5 |
170 6.6 |
110 4.3 |
350 13.8 |
265 10.4 |
375 14.8 |
200 7.9 |
250 9.8 |
70 2.8 |
| ST9-4 | 9.5 3/8 |
16.5 0.6 |
25 80 |
290 11.4 |
140 5.5 |
170 6.6 |
110 4.3 |
350 13.8 |
265 10.4 |
375 14.8 |
200 7.9 |
250 9.8 |
70 2.8 |
| ST9-5 | 9.5 3/8 |
16.5 0.6 |
30 100 |
290 11.4 |
140 5.5 |
170 6.6 |
110 4.3 |
380 15 |
265 10.4 |
405 15.9 |
215 8.5 |
250 9.8 |
70 2.8 |
| ST9-6 | 9.5 3/8 |
16.5 0.6 |
35 115 |
270 10.6 |
120 4.7 |
300 11.8 |
150 5.9 |
550 21.7 |
245 9.6 |
585 23 |
310 12.2 |
230 9.1 |
110 4.3 |
| ST9-7 | 9.5 3/8 |
16.5 0.6 |
40 131 |
270 10.6 |
120 4.7 |
300 11.8 |
150 5.9 |
550 21.7 |
245 9.6 |
585 23 |
310 12.2 |
230 9.1 |
110 4.3 |
| ST9-8 | 9.5 3/8 |
16.5 0.6 |
45 148 |
300 11.8 |
150 5.9 |
300 11.8 |
150 5.9 |
550 21.7 |
275 10.8 |
585 23 |
310 12.2 |
260 10.2 |
110 4.3 |
| ST9-9 | 9.5 3/8 |
16.5 0.6 |
50 164 |
300 11.8 |
150 5.9 |
300 11.8 |
150 5.9 |
550 21.7 |
275 10.8 |
585 23 |
310 12.2 |
260 10.2 |
110 4.3 |
| ST13-1 | 12.7 1/2 |
20.6 0.8 |
10 30 |
270 10.6 |
120 4.7 |
200 7.9 |
110 4.3 |
350 13.8 |
275 10.8 |
375 14.8 |
200 7.9 |
230 9.1 |
70 2.8 |
| ST13-2 | 12.7 1/2 |
20.6 1.8 |
15 50 |
300 11.8 |
150 5.9 |
200 7.9 |
110 4.3 |
350 13.8 |
305 12.0 |
375 14.8 |
200 7.9 |
260 10.2 |
70 2.8 |
| ST13-3 | 12.7 1/2 |
20.6 0.8 |
20 70 |
300 11.8 |
150 5.9 |
200 7.9 |
110 4.3 |
380 15 |
305 12.0 |
405 15.9 |
215 8.5 |
260 10.2 |
70 2.8 |
| ST13-4 | 12.7 1/2 |
20.6 0.8 |
25 80 |
270 10.6 |
120 4.7 |
200 7.9 |
150 5.9 |
450 17.7 |
275 10.8 |
490 19.3 |
265 10.4 |
230 9.1 |
110 4.3 |
| ST13-5 | 12.7 1/2 |
20.6 0.8 |
30 100 |
300 11.8 |
150 5.9 |
200 7.9 |
150 5.9 |
450 17.7 |
275 10.8 |
490 19.3 |
265 10.4 |
260 10.2 |
110 4.3 |
| ST13-6 | 12.7 1/2 |
20.6 0.8 |
35 115 |
300 11.8 |
150 5.9 |
250 9.8 |
200 7.9 |
550 21.7 |
335 13.2 |
585 23 |
310 12.2 |
260 10.2 |
160 6.3 |
| ST13-7 | 12.7 1/2 |
20.6 0.8 |
40 130 |
300 11.8 |
150 5.9 |
250 9.8 |
200 7.9 |
550 21.7 |
335 13.2 |
585 23 |
310 12.2 |
260 10.2 |
160 6.3 |
| ST13-8 | 12.7 1/2 |
20.6 0.8 |
45 150 |
330 13 |
180 7.1 |
250 9.8 |
200 7.9 |
550 21.7 |
335 13.2 |
585 23 |
310 12.2 |
290 11.4 |
160 6.3 |
| ST13-9 | 12.7 1/2 |
20.6 0.8 |
50 165 |
330 13 |
180 7.1 |
250 9.8 |
200 7.9 |
550 21.7 |
335 13.2 |
585 23 |
310 12.2 |
290 11.4 |
160 6.3 |
| ST19-1 | 19 3/4 |
27.8 1.09 |
10 30 |
270 10.6 |
120 4.7 |
250 9.8 |
200 7.9 |
450 17.7 |
260 10.2 |
490 19.3 |
265 10.4 |
230 9.1 |
160 6.3 |
| ST19-2 | 19 3/4 |
27.8 1.09 |
15 50 |
300 11.8 |
150 5.9 |
250 9.8 |
200 7.9 |
450 17.7 |
290 11.4 |
490 19.3 |
265 10.4 |
260 10.2 |
160 6.3 |
| ST19-3 | 19 3/4 |
27.8 1.09 |
20 70 |
360 14.2 |
210 8.3 |
250 9.8 |
200 7.9 |
450 17.7 |
350 11.8 |
490 19.3 |
265 10.4 |
320 12.6 |
160 6.3 |
| ST19-4 | 19 3/4 |
27.8 1.09 |
25 80 |
360 14.2 |
210 8.3 |
250 9.8 |
200 7.9 |
500 19.7 |
380 15 |
540 21.3 |
290 11.4 |
320 12.6 |
160 6.3 |
| ST19-5 | 19 3/4 |
27.8 1.09 |
30 100 |
390 15.4 |
240 9.4 |
250 9.8 |
200 7.9 |
500 19.7 |
410 16.1 |
540 21.3 |
290 11.4 |
350 13.8 |
160 6.3 |
| ST25-1 | 25 1 |
35.6 1.4 |
10 30 |
300 11.8 |
150 5.9 |
250 9.8 |
200 7.9 |
500 19.7 |
305 12.0 |
540 21.3 |
290 11.4 |
260 10.2 |
160 6.3 |
| ST25-2 | 25 1 |
35.6 1.4 |
15 50 |
330 13.0 |
180 7.1 |
250 9.8 |
200 7.9 |
500 19.7 |
335 13.2 |
540 21.3 |
290 11.4 |
290 11.4 |
160 6.3 |
| ST25-3 | 25 1 |
35.6 1.4 |
20 70 |
390 15.4 |
240 9.4 |
250 9.8 |
200 7.9 |
500 19.7 |
395 15.6 |
540 21.3 |
290 11.4 |
350 13.8 |
160 6.3 |
| ST25-4 | 25 1 |
35.6 1.4 |
25 80 |
360 14.2 |
210 8.3 |
250 9.8 |
200 7.9 |
550 21.7 |
365 14.4 |
570 22.4 |
320 12.6 |
320 12.6 |
160 6.3 |
| ST25-5 | 25 1 |
35.6 1.4 |
30 100 |
390 15.4 |
240 9.4 |
250 9.8 |
200 7.9 |
550 21.7 |
395 15.6 |
570 22.4 |
320 12.6 |
350 13.8 |
160 6.3 |
※The specifications are subject to change without notice for improvement.
