REELTEC

REELTEC

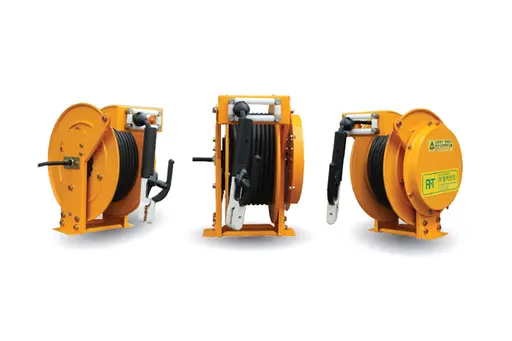

ARC Welding Cable Reel (WCR-Series)

Model

Series

Welding Reel

Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.

Description

Cable specifications Voltage Max Ampere Rewind Application
Square Cable Material core Length(MR)
25~50 WCT 1 10MR~50MR
33feet~164feet		 220V 600A Spring Floor,Wall,Ceiling



Design & Structure

  • Reels are all steel construction and compact design
  • All bolted assembly without welding
  • Dual frame ,guide plate & ball bearing support.
  • Special heat-treatment spring & non-corrosive, non-sparking ratchet.
  • 4-way guide roller assembly. Roller position must be specified
  • Quick connection to your welder
  • 400amp rated slip ring.
  • All materials are carbon steel as standard(Stainless, Aluminum and other materials are available when you request)
  • Other specifications are available.



Painting : Powder Coat.





MODEL. No CABLE CAPACITY REEL DIMENSIONS
Wire Size Number of
Conduct		 Length A B C D E F G H X Y
sq core meter mm mm mm mm mm mm mm mm mm mm
WCR25-1 25 1 10
33		 260
10.23		 120
4.72		 250
9.84		 110
4.33		 350
13.78		 240
9.44		 375
14.76		 200
7.87		 230
9.06		 70
2.76
WCR25-2 25 1 15
49		 260
10.23		 120
4.72		 250
9.84		 110
4.33		 350
13.78		 240
9.44		 375
14.76		 200
7.87		 230
9.06		 70
2.76
WCR25-3 25 1 20
66		 260
10.23		 120
4.72		 250
9.84		 110
4.33		 350
13.78		 240
9.44		 375
14.76		 200
7.87		 230
9.06		 70
2.76
WCR25-4 25 1 25
82		 260
10.23		 120
4.72		 250
9.84		 110
4.33		 350
13.78		 240
9.44		 375
14.76		 200
7.87		 230
9.06		 70
2.76
WCR25-5 25 1 30
98		 260
10.23		 120
4.72		 250
9.84		 110
4.33		 380
14.96		 240
9.44		 405
15.94		 215
8.46		 230
9.06		 70
2.76
WCR35-1 35 1 10
33		 260
10.23		 120
4.72		 250
9.84		 110
4.33		 350
13.78		 240
9.44		 375
14.76		 200
7.87		 230
9.06		 70
2.76
WCR35-2 35 1 15
49		 260
10.23		 120
4.72		 250
9.84		 110
4.33		 350
13.78		 240
9.44		 375
14.76		 200
7.87		 230
9.06		 70
2.76
WCR35-3 35 1 20
66		 260
10.23		 120
4.72		 250
9.84		 110
4.33		 380
14.96		 240
9.44		 405
15.94		 215
8.46		 230
9.06		 70
2.76
WCR35-4 35 1 25
82		 260
10.23		 120
4.72		 250
9.84		 110
4.33		 380
14.96		 240
9.44		 405
15.94		 215
8.46		 230
9.06		 70
2.76
WCR35-5 35 1 30
98		 260
10.23		 120
4.72		 300
11.81		 150
5.9		 450
17.71		 250
9.84		 480
18.9		 255
10.03		 230
9.06		 110
4.33
WCR50-1 50 1 10
33		 260
10.23		 120
4.72		 250
9.84		 110
4.33		 350
13.78		 240
9.44		 375
14.76		 200
7.87		 230
9.06		 70
2.76
WCR50-2 50 1 15
49		 260
10.23		 120
4.72		 250
9.84		 110
4.33		 380
14.96		 240
9.44		 405
15.94		 215
8.46		 230
9.06		 70
2.76
WCR50-3 50 1 20
66		 260
10.23		 120
4.72		 250
9.84		 110
4.33		 380
14.96		 240
9.44		 405
15.94		 215
8.46		 230
9.06		 70
2.76
WCR50-4 50 1 25
82		 260
10.23		 120
4.72		 300
11.81		 150
5.9		 450
17.71		 250
9.84		 480
18.9		 255
10.03		 230
9.06		 110
4.33
WCR50-5 50 1 30
98		 290
11.41		 150
5.9		 300
11.81		 150
5.9		 450
17.71		 250
9.84		 480
18.9		 255
10.03		 260
10.24		 110
4.33
