REELTEC

REELTEC

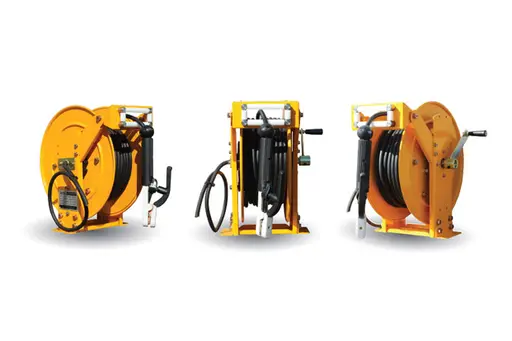

ARC Welding Cable Reel (WMR-Series)

Model

Series

Welding Reel

Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.

Description

Cable specifications Voltage Max Ampere Rewind Application
Square Cable Material core Length(MR)
25~50 WCT 1 10MR~50MR
33feet~164feet		 220V 600A Manual Floor,Wall,Ceiling



Design & Structure

  • Reels are all steel construction and compact design
  • All bolted assembly without welding
  • Dual frame ,guide plate & ball bearing support
  • Special heat-treatment non-corrosive & non-sparking ratchet.
  • 4-way guide roller assembly. Roller position must be specified
  • 400amp rated slip ring
  • For use with single conductor electrode cable or grounding lead
  • 400amp rated slip ring.
  • All materials are carbon steel as standard (Stainless, Aluminum and other materials are available when you request)
  • Other specifications are available.



Painting : Powder Coat.





MODEL NO. CABLE CAPACITY REEL DIMENSION
WireSize Number of Conduct Length A B C D E F G H X Y
sq core meter mm mm mm mm mm mm mm mm mm mm
feet inch inch inch inch inch inch inch inch inch inch
WMR25-3 25 1 20 260 120 250 110 350 240 375 200 230 70
66 10.23 4.72 9.84 4.33 13.78 9.44 14.76 7.87 9.06 2.76
WMR25-5 25 1 30 290 150 250 110 350 240 375 200 260 70
98 11.41 5.9 9.84 4.33 13.78 9.44 14.76 7.87 10.24 2.76
WMR25-7 25 1 40 260 120 250 110 380 240 405 215 230 70
131 10.23 4.72 9.84 4.33 13.78 9.44 15.94 8.46 9.06 2.76
WMR25-9 25 1 50 290 150 250 110 380 240 405 215 260 70
164 11.41 5.9 9.84 4.33 13.78 9.44 15.94 8.46 10.24 2.76
WMR35-3 35 1 20 260 120 250 110 350 240 375 200 230 70
66 10.23 4.72 9.84 4.33 13.78 9.44 14.76 7.87 9.06 2.76
WMR35-5 35 1 30 260 120 250 110 380 240 405 215 230 70
98 10.23 4.72 9.84 4.33 13.78 9.44 15.94 8.46 9.06 2.76
WMR35-7 35 1 40 290 150 250 110 380 240 405 215 260 70
131 11.41 5.9 9.84 4.33 13.78 9.44 15.94 8.46 10.24 2.76
WMR35-9 35 1 50 260 120 250 150 450 250 480 255 230 110
164 10.23 4.72 9.84 5.9 17.71 9.44 18.9 10.03 9.06 4.33
WCR50-3 50 1 20 260 120 250 110 380 240 405 215 230 70
66 10.23 4.72 9.84 4.33 13.78 9.44 15.94 8.46 9.06 2.76
WCR50-5 50 1 30 260 120 250 110 380 240 405 215 230 70
98 10.23 4.72 9.84 4.33 13.78 9.44 15.94 8.46 9.06 2.76
WCR50-7 50 1 40 260 120 250 150 450 250 480 255 230 110
131 10.23 4.72 9.84 5.9 17.71 9.44 18.9 10.03 9.06 4.33
WCR50-9 50 1 50 290 150 250 150 450 250 480 255 260 110
164 11.41 5.9 9.84 5.9 17.71 9.44 18.9 10.03 9.06 4.33
