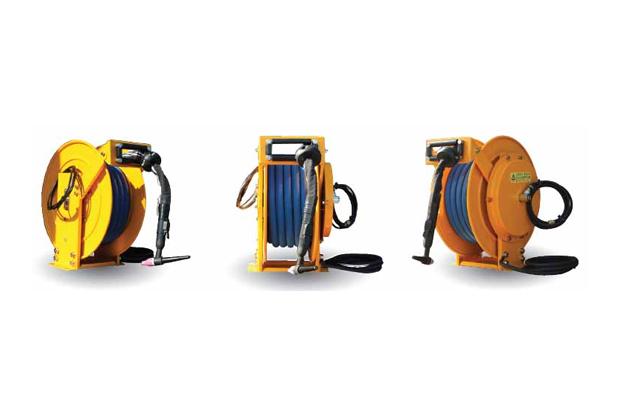

ARGON Welding Cable Reel (AG Series)
Model Name
AG25-1
Series
Welding Reel
Data
-
Manufacturer information
provider logo
REELTEC

Reel manufacturer, Air reel, Gas reel, Hose reel, Hose for crane and more

Problem with product info?
Update request
Manufacturer
REELTEC
Brand
-
SKU
137814
Product Name
ARGON Welding Cable Reel (AG Series)
Model Name
AG25-1, AG25-2, AG25-3
Size
-
Weight
-
Product Details

Design & Structure

  • Reels are all steel construction and compact design
  • All bolted assembly without welding.
  • Dual frame ,guide plate & ball bearing support.
  • Special heat-treatment spring & non-corrosive, non-sparking ratchet.
  • 4-way guide roller assembly. Roller position must be specified.
  • Quick connection to your welder.
  • For use with single conductor electrode cable or grounding lead.
  • 400amp rated slip ring.
  • Declutching arbor is provided to prevent damage from reverse wni ding.
  • All materials is carbon steel as standard(Stainless, Aluminum and other materials are available when you request)
  • Other specifications are available.



Painting : Powder Coat.



Specification

  • Can be control Argon and Tig welding cable by one reel.
  • Increase usability and easy control workings.
  • Facilitate by custom made according to working place or usage.



MODEL No. Reel Dimension
(W*D*H)m/m
Length Cable Earth Gas Hose Rewind Type
AG25-1 330*450*490 10MR 1.25sq*2c 38sq Φ6 Spring Rewind
AG25-2 330*450*490 15MR 1.25sq*2c 38sq Φ6 Spring Rewind
AG25-3 380*450*490 20MR 1.25sq*2c 38sq Φ6 Spring Rewind
