product Image
Storage Reel
Model Name
SR30C
Series
Storage Reel
Data
-
Manufacturer information
provider logo
REELTEC

Reel manufacturer, Air reel, Gas reel, Hose reel, Hose for crane and more

Problem with product info?
Update request
Manufacturer
REELTEC
Brand
-
SKU
137840
Product Name
Storage Reel
Model Name
SR30C, SR30R, SR30T
Size
-
Weight
-
Product Details

Specification

  • SR3000 Series are non-contacting cable reel for AUDIO & VIDEO
  • Distinguished 3 Type of SR30C, SR30R, SR30T by INLET connect type
  • Excellent Rewind capacity by powerful DC Motor. DC Motor is installed inside of the reel
  • Safety cover on the chain gear is installed to prevent safety accident.
  • Provide detachable handle basically





  • Attach connector of elbow type at axis of shaft
  • Compact type by connector located outside
  • No connector broken problem






  • Connector fixed type at right or left side of drum inside






  • Provide spare drum for Store INLET CABLE



Model No. Reel Dimension
(W×D×H)mm
Rewind Length by Cable capacity Rewind Type
O.D ø21 O.D ø16 O.D ø10 O.D ø 8
SR 30C 560×450×480 50MR 80MR 220MR 350MR Power Rewind
SR 30R 560×450×480 50MR 80MR 220MR 350MR Power Rewind
SR 30T 630×450×480 50MR 80MR 220MR 350MR Power Rewind

※ The Specifications are subject to change without notice for improvement

More products
product image
Storage Reel (AV-Series)AV45-F, AV38-F, AV30-F, AV45-R, AV38-R, AV30-R, AV45-W, AV38-W, AV30-W
Storage Reel (SR2000-Series)SR2/15-17, SR2/15-29, SR2/15-39, SR2/19-17, SR2/19-29, SR2/19-39, SR2/25-17, SR2/25-29, SR2/25-39
product image
Storage Reel (SR1000-Series)SR1/6-54, SR1/6-72, SR1/9-29, SR1/9-39, SR1/9-54, SR1/9-60, SR1/13-17, SR1/13-29, SR1/13-39
product image
Manual Rewind Type (GHR-Series)GHR3-1, GHR3-2, GHR3-3, GHR3-4, GHR3-5, GHR3-7, GHR3-9, GHR3-11, GHR5-1, GHR5-2, GHR5-3, GHR5-4, GHR5-5, GHR5-7, GHR5-9, GHR5-11
product image
Spring Rewind Type (GCR-Series)GCR3-2, GCR3-3, GCR3-5, GCR5-2, GCR5-3, GCR5-5
product image
Stroke Sensor Cord ReelSR102, SR108, SR230, SR407, SR430
product image
Over wind prevention-Open Type Sensor Cord ReelCSR222
product image
Over wind prevention-Enclosed Type Sensor Cord ReelCDR318
product image
Multiple Hose Reel (HC Series)HC3-94-D450-X, HC3-94-D500-X, HC3-94-D550-X, HC3-94-D600-X, HC3-94-D650-X
product image
Self Retracting Cable Reels (CNR-Series)CNR2320P-X, CNR2330P-X, CNR2340P-X, CNR2350P-X, CNR2420P-X, CNR2430P-X, CNR2440P-X, CNR2450P-X, CNR2520P-X, CNR2530P-X, CNR2540P-X, CNR2550P-X, CNR4320P-X, CNR4330P-X, CNR4340P-X, CNR4350P-X, CNR4420P-X, CNR4430P-X, CNR4440P-X, CNR4450P-X, CNR4520P-X, CNR4530P-X, CNR4540P-X, CNR4550P-X
product image
Self Retracting Cable Reels (CWR-Series)CWR2320P-X, CWR2330P-X, CWR2340P-X, CWR2350P-X, CWR2420P-X, CWR2430P-X, CWR2440P-X, CWR2450P-X, CWR2520P-X, CWR2530P-X, CWR2540P-X, CWR2550P-X, CWR4320P-X, CWR4330P-X, CWR4340P-X, CWR4350P-X, CWR4420P-X, CWR4430P-X, CWR4440P-X, CWR4450P-X, CWR4520P-X, CWR4530P-X, CWR4540P-X, CWR4550P-X
product image
Self Retracting Cable Reels
product image

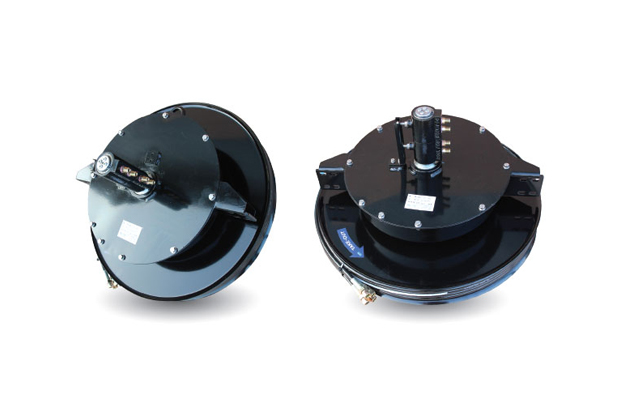

Self Retracting Hydraulic Hose Reel (4-port Hosereel)HFR-06-D450, HFR-09-D450, HFR-06-D500, HFR-09-D500, HFR-06-D550, HFR-09-D550, HFR-06-D600, HFR-09-D600, HFR-06-D650, HFR-09-D650, HFR-06-D700, HFR-09-D700, HFR-06-D750, HFR-09-D750
