SQ, SQE, UU Core

SQ, SQE, UU Core

Model Name

Series

Ferrite Core

View AllView All Series

Data

Manufacturer information

SAMWHA ELECTRONICS

Soft Ferrite Core Manufacturer

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

SAMWHA ELECTRONICS

Brand

SKU

134538

Product Name

SQ, SQE, UU Core

Model Name

Size

Weight

Product Details

Introduction

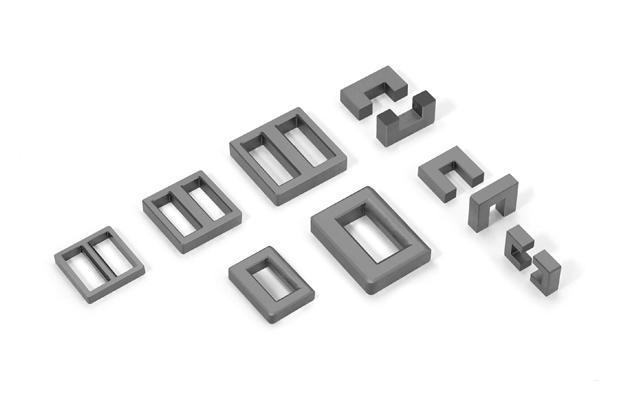

This shape is optimized design to get effective sectional area and path length like E cores.\

Features

SQ, SQE is not splitted to two parts, so it could get higher inductance and impedance characteristics. Their main application is noise filter and in case U shape, it is easy to make bigger power.

Applications

Noise filter for home applications. U core used for welding machine, generator of Plazma.

Part No.	Type	Dimensions in mm
Part No.	Type	A	B	C	D	E	F	H	J
SQ1715S	SQ	17.60±0.20	15.00±0.20	3.60±0.20	4.55±0.20	3.75±0.15		3.00±0.15
SQ2014S	SQ	20.60±0.30	14.10±0.25	4.60±0.20	7.25 min.	4.20±0.20	15.70 min.	2.30±0.15	2.40±0.15
SQ2115S	SQ	21.50±0.30	14.90±0.25	3.70±0.15	6.65 min.	4.30±0.15	15.40 min.	2.90±0.15	3.70±0.15
SQ2116S	SQ	21.50±0.20	15.80±0.25	4.60+0/-0.20	7.00±0.20	4.40±0.20	15.30±0.20	3.10±0.15
SQ2215S	SQ	21.50±0.30	14.90±0.25	4.50±0.20	7.60 min.	4.20±0.20	15.90 min.	2.65±0.15	2.80±0.20
SQ4030S	SQ	40.70±0.40	30.80±0.40	8.70±0.30	13.10 min.	8.70±0.30	26.60 min.	6.90±0.20	8.60±0.25

Part No.	Type	Dimensions in mm
Part No.	Type	A	B	C	D	E	F	H	J
SQE2020S	SQE	20.10±0.40	20.10±0.40	4.40±0.20	15.70 min	4.00±0.20	15.70 min	2.00±0.20	2.00±0.20
SQE2215S	SQE	21.50±0.30	14.90±0.20	4.50±0.20	7.60 min	4.20±0.20	15.90 min	2.65±0.15	2.80
SQE2222S	SQE	23.50±0.30	22.00±0.30	3.80±0.20	19.40±0.20	3.80±0.20	17.60±0.20	2.20±0.15	2.05±0.15
SQE2424S	SQE	24.20±0.50	24.20±0.30	4.00±0.30	19.00 min	4.00±0.30	19.00 min	2.40±0.15	2.40±0.15
SQE2626S	SQE	26.00+0.40 /-0.20	26.00+0.40 /-0.20	4.50+0.10 /-0.20	21.00+0.30 /-0.20	4.50±0.20	21.00+0.30 /-0.20	2.50±0.15	2.50±0.15
SQE2828S	SQE	28.45±0.55	28.45±0.55	5.00±0.30	22.00 min	5.00±0.20	22.20 min	2.90±0.15	2.90±0.15
SQE2930S	SQE	29.00±0.40	30.00±0.40	5.00±0.30	22.60 min	5.00±0.25	23.60 min	3.00±0.20	4.00±0.20
SQE3535N	SQE	35.30±0.60	35.30±0.60	7.50±0.30	26.80 min	7.50±0.30	26.80 min	4.00±0.20	4.00±0.20

Part No.	Type	Dimensions in mm
Part No.	Type	A	B	C1	C2	D	E
UU1014S	UU	9.80±0.20	7.10±0.10	2.70±0.20	2.80±0.10	4.20±0.20	4.20±0.20
UU1015S	UU	10.15±0.20	7.40±0.20	2.90+0.10 /-0.15	2.90±0.20	4.15±0.20	4.20+0.35/-0
UU1116S	UU	10.50±0.30	7.90±0.20	5.00±0.30	2.50±0.20	6.50±0.30	5.40±0.20
UU1320S	UU	13.50±0.30	9.90+0/-0.30	5.00+0/-0.40	3.50+0/-0.25	6.50+0.50/-0	6.10+0.30/-0
UU1420S	UU	14.00+0 /-0.50	9.55±0.20	8.00+0/-0.50	4.00+0/-0.50	5.60 min.	5.60 min.
UU1522S	UU	15.20±0.30	11.20±0.25	6.70+0/-0.50	5.00 ref.	5.20±0.30	5.70+0.70/-0
UU1523N	UU	15.20±0.30	11.40±0.20	6.40+0/-0.20	5.00±0.20	5.20±0.30	6.40±0.20
UU1620S	UU	16.00±0.30	10.00±0.20	6.00±0.15	4.50 ref.	6.70 min.	6.00±0.15
UU1622S	UU	16.00±0.30	11.00±0.20	6.00±0.15	4.50 ref.	6.70 min.	7.00±0.15
UU1820S	UU	18.00±0.30	10.00±0.20	6.00±0.15	4.50 ref.	8.70 min.	6.50±0.15
UU2027S	UU	20.05±0.30	13.50+0.50/-0	11.00±0.25	5.00±0.15	10.50±0.30	8.50+0.50/-0
UU2132S	UU	20.80±0.60	15.80+0.40 /-0.30	7.70+0/-0.50	7.25 ref.	6.00+0.60/-0	8.00+0.60/-0
UU2323S	UU	23.00±0.50	11.40±0.20	6.40±0.20	5.00±0.20	13.00±0.30	6.40±0.20
UU2528S	UU	25.00±0.40	14.00±0.20	7.00±0.30	7.00±0.20	11.00±0.40	7.00±0.30
UU2537S	UU	24.50±0.70	18.40±0.50	7.30±0.30	7.30 ref.	9.90±0.30	10.85±0.25
UU2633SN	UU	26.50±0.50	16.50±0.25	16.00±0.25	5.00+0/-0.50	16.00+1.50 /-00	11.50+0.50/-0
UU2831S	UU	28.00+0/-0.50	15.50+0/-0.50	7.00+0/-0.50	7.00+0/-0.50	14.00+0/-0.50	8.50+0/-0.50
UU3356S	UU	32.50±0.70	27.75±0.50	12.50±0.30	9.50 ref.	13.50±0.50	17.75+0.5 /-0.2
UU3639S	UU	36.00+0/-0.50	19.50+0/-0.50	12.00+0/-0.50	7.00+0/-0.50	22.00+0/-0.50	12.50+0/-0.50
U8065S	UU	80.00±1.60	64.80±0.50	31.80±0.60	22.30 ref.	35.20±1.20	42.50±0.90
U8065SC	UU	80.00±1.60	64.80±0.50	16.00±0.40	22.30 ref.	35.20±1.20	42.50±0.90
U93	UU	93.00±1.80	76.00±0.50	30.00±0.60	28.00 ref.	35.00 min.	48.00±0.90

Part No.	Type	Dimensions in mm
Part No.	Type	A	B	C	D	E	F	D	E	F
UI0607S	UI	6.20±0.20	5.50±0.10	2.00±0.10	1.40±0.10	3.40±0.10	3.50±0.10	6.20±0.20	1.40±0.10	3.00±0.10
UI4135S	UI	41.00±0.20	30.00±0.10	10.00±0.10	±0.10	5.00±0.10	25.30±0.10	±0.20	5.00±0.10	±0.10
UI93	UI	93.00±1.80	76.00±0.50	30.00±0.60	28.00 ref.	35.00 min.	48.00±0.90	93.00±1.80	27.50±0.50	30.00±0.60

SAMWHA ELECTRONICS

Soft Ferrite Core Manufacturer

Samwha Electronics has been established in 1976 and we have been one of the leading manufacturers in the Soft Ferrite Core Market and maintaining a good reputation worldwide. Samwha is promoting for a transition and vault in the rapid Digital of the 21st Electronic Market and global competition. In order to recreate valuable enterprise for human and the environment, we are reforming business structure and innovating productivity. Samwha is taking a step forward to accomplish the establishment of a Portfolio,through rapid stabilization of the Qingdao factory, investment for a high profitable item/business and chip etc. settlement for TPM, construction for environmental management and advances of enterprise culture simultaneously. Samwha is expediting R&D and technical renovation but also seeking for a new highly profitable business. Thank you for encouragement and incitement to Samwha Electronics in the meantime. We will become an enterprise listening to customer and shareholders, contributing to a society and cherish our employees.
