134551
Product Name

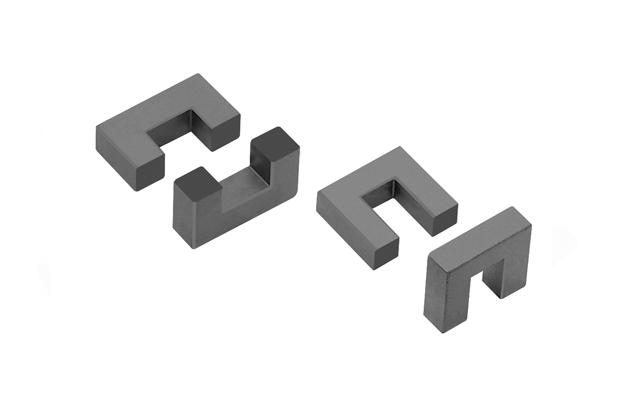

U Core
Model Name
-
Size
-
Weight
-
Product Details
Introduction
This shape is optimized design to get effective sectional area and path length like E cores.
Features
Energy storage capacity is very hige and expected no magnetic flux leakage.
Applications
This shape is used for chokes of SMPS and flyback transformer.
Cross Reference
| Part No. | Unit | A | B | C1 | C2(norm) | D(min) | D(min) |
| SU3112 | mm | 31.2 | 11.2 | 12.1 | 8.26 | 14.22 | 2.79 |
| in | 1.23±0.020 | 0.440±0.010 | 0.475±0.015 | 0.325 | 0.56 | 0.110 | |
| SU4110 | mm | 40.6 | 11.2 | 9.5 | 8.38 | 23.88 | 2.79 |
| in | 1.6±0.020 | .440±0.020 | .375±0.015 | 0.33 | 0.94 | 0.110 | |
| SU4111 | mm | 40.6 | 11.2 | 12.1 | 8.38 | 23.88 | 2.79 |
| in | 1.6±0.020 | .440±0.0100 | .475±0.015 | 0.33 | 0.94 | 0.110 | |
| SU4119 | mm | 40.6 | 11.2 | 19 | 8.38 | 23.88 | 2.79 |
| in | 1.6±0.020 | .440±0.010 | .750±0.015 | 0.33 | 0.94 | 0.110 | |
| SU5527 | mm | 54.9 | 27.6 | 16.3 | 10.5 | 33.9 | 17 |
| in | 2.16±0.0 | 1.085±0.020 | .643±0.012 | 0.42 | 1.335 | 0.65 | |
| SU5529 | mm | 54.9 | 27.6 | 23.2 | 10.5 | 33.9 | 17 |
| in | 2.16±0.025 | 1.085±0.020 | .912±0.015 | 0.42 | 1.335 | 0.65 | |
| SU6527 | mm | 65.1 | 32.5 | 27 | 10 | 44.2 | 22.2 |
| in | 2.565±0.053 | 1.28±0.012 | 1.063±0.016 | 0.394 | 1.741 | 0.874 | |
| SU6533 | mm | 65.1 | 32.5 | 20 | 12.5 | 40.1 | 20 |
| in | 2.565±0.053 | 1.28±0.012 | .788±0.016 | 0.493 | 1.545 | 0.764 |
