Product Name

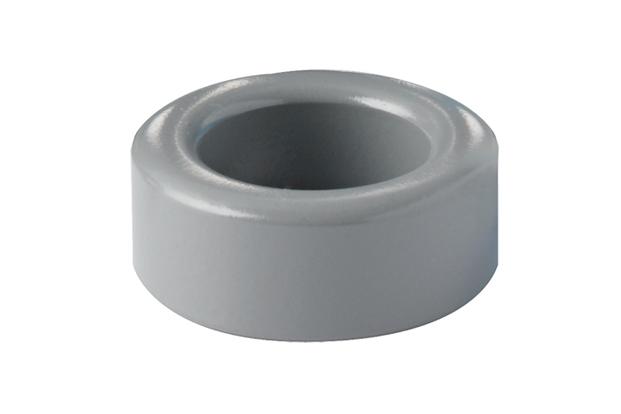

Toroid Core
Model Name
-
Size
-
Weight
-
Product Details
Introduction
The most optomized shape to make magnetic field. No leakage inductance and other lossss are available.
Features
Shape is like a donut and directly wound normally. This shape gets full of the characteristics of material which applied.
Applications
They are applied to line filter ande inductors.
| Part No. | Dimensions in mm | ||
| A | B | C | |
| OR2.5×1.3-1.3H | 2.54±0.30 | 1.27±0.15 | 1.27±0.10 |
| OR4×1.6-2H | 4.00±0.20 | 1.60±0.20 | 2.00±0.20 |
| OR8×2-4H | 8.00±0.30 | 2.00±0.20 | 4.00±0.30 |
| OR8×3-4H | 8.00±0.30 | 3.00±0.30 | 4.00±0.30 |
| OR8×4-4H | 8.00±0.30 | 4.00±0.30 | 4.00±0.30 |
| OR9×3-5H | 9.00±0.30 | 3.00±0.20 | 5.00±0.20 |
| OR10×4-6H | 10.00±0.30 | 4.00±0.25 | 6.00±0.30 |
| OR10×5-5H | 10.00±0.20 | 5.00±0.30 | 5.00±0.20 |
| OR12×4-6H | 12.00±0.30 | 4.00±0.25 | 6.00±0.30 |
| OR12.7×3.1-8.1H | 12.70±0.25 | 3.10±0.25 | 8.10±0.20 |
| OR12.7×4.7-7.1H | 12.70±0.30 | 4.70±0.25 | 7.10±0.30 |
| OR12.7×6.35-7.92H | 12.70±0.25 | 6.35±0.25 | 7.92±0.20 |
| OR12.7×6.35-8.1H | 12.70±0.25 | 6.35±0.25 | 8.10±0.25 |
| OR12.7×6-8.1H | 12.70±0.25 | 6.00±0.25 | 8.10±0.25 |
| OR13×5-8H | 13.00±0.50 | 5.00±0.30 | 8.00+0/-1.00 |
| OR13×6.5-8H | 13.00±0.50 | 6.50±0.30 | 8.00+0/-1.00 |
| OR13×6-8H | 13.00±0.50 | 6.00±0.30 | 8.00+0/-1.00 |
| OR14×4-7.5H | 14.00±0.30 | 4.00±0.30 | 7.50±0.30 |
| OR14×4-8H | 14.00±0.20 | 4.00±0.20 | 8.00±0.20 |
| OR14×5-7.5H | 14.00±0.30 | 5.00±0.30 | 7.50±0.30 |
| OR14×5-9H | 14.00±0.30 | 5.00±0.30 | 9.00±0.30 |
| OR14×6.5-7.5H | 14.00±0.30 | 6.50±0.30 | 7.50±0.30 |
| OR14×7-7.5H | 14.00±0.30 | 7.00±0.30 | 7.50±0.30 |
| OR14×7-8H | 14.00±0.20 | 7.00±0.20 | 8.00±0.20 |
| OR16×4-12H | 16.00±0.30 | 4.00±0.30 | 12.00±0.30 |
| OR16×4-9.6H | 16.00±0.30 | 4.00±0.30 | 9.60±0.30 |
| OR16×5-12H | 16.00±0.30 | 5.00±0.30 | 12.00±0.30 |
| OR16×5-9.6H | 16.00±0.30 | 5.00±0.30 | 9.60±0.30 |
| OR16×6.3-9.6H | 16.00±0.30 | 6.30±0.30 | 9.60±0.30 |
| OR16×8-12HT | 15.80±0.30 | 8.00±0.30 | 11.90±0.30 |
| OR16×8-8H | 16.00±0.50 | 8.00±0.40 | 8.00±0.40 |
| OR16×11-8H | 16.00±0.50 | 11.00±0.40 | 8.00±0.40 |
| OR19×5-10H | 19.00±0.30 | 5.00±0.30 | 9.80±0.40 |
| OR19×6-13H | 19.00±0.30 | 6.00±0.20 | 13.00±0.30 |
| OR19×9.5-13H | 19.00±0.30 | 9.50±0.25 | 13.00±0.30 |
| OR19×10-10H | 19.00±0.40 | 10.30±0.30 | 9.80±0.40 |
| OR19×11-13H | 19.00±0.30 | 11.00±0.20 | 13.00±0.30 |
| OR19×16-5H | 19.00±0.40 | 16.00±0.40 | 5.00±0.15 |
| OR19×19-5H | 19.00±0.40 | 19.00±0.40 | 5.00±0.15 |
| OR20×7-10H | 20.00±0.40 | 7.00±0.30 | 10.00±0.30 |
| OR20×8-10H | 20.00±0.40 | 8.00±0.30 | 10.00±0.30 |
| OR20×10-10H | 20.00±0.40 | 10.00±0.30 | 10.00±0.30 |
| OR22.1×6.35-13.7H | 22.10±0.40 | 6.35±0.25 | 13.70±0.30 |
| OR22.1×8-13.7H | 22.10±0.40 | 8.00±0.25 | 13.70±0.30 |
| OR22.1×11-13.7H | 22.10±0.40 | 11.00±0.25 | 13.70±0.30 |
| OR22.1×12.7-13.7H | 22.10±0.40 | 12.75±0.25 | 13.70±0.30 |
| OR22×8-14H | 22.00±0.40 | 8.00±0.35 | 14.00±0.35 |
| OR22×13-14H | 22.00±0.40 | 13.00±0.25 | 14.00±0.30 |
| OR25×3-15H | 25.00±0.30 | 3.00±0.30 | 15.00±0.30 |
| OR25×4-15H | 25.00±0.30 | 4.00±0.30 | 15.00±0.30 |
| OR25×5-15H | 25.00±0.30 | 5.00±0.30 | 15.00±0.30 |
| OR25×6-15H | 25.00±0.30 | 6.00±0.30 | 15.00±0.30 |
| OR25×10-15H | 25.00±0.30 | 10.00±0.30 | 15.00±0.30 |
| OR25×12-15H | 25.00±0.30 | 12.00±0.30 | 15.00±0.30 |
| OR25×12.5-15H | 25.00±0.30 | 12.00±0.30 | 15.00±0.30 |
| OR25×13-15H | 25.00±0.30 | 13.00±0.30 | 15.00±0.30 |
| OR25×15-15H | 25.00±0.30 | 15.00±0.30 | 16.00±0.30 |
| OR26×15-16H | 26.00±0.40 | 15.00±0.30 | 16.00±0.30 |
| OR28×13-16H | 28.00±0.40 | 13.00±0.30 | 16.00±0.40 |
| OR28×16-16H | 28.00±0.40 | 16.00±0.30 | 16.00±0.40 |
| OR29×7.5-19H | 29.00±0.75 | 7.50±0.55 | 19.00±0.75 |
| OR29×12.5-19HU | 29.00±0.50 | 12.50±0.55 | 19.00±0.75 |
| OR29×15-19H | 29.00±0.50 | 15.00±0.55 | 19.00±0.75 |
| OR29×15-19HU | 29.00±0.50 | 15.00±0.55 | 19.00±0.75 |
| OR29×16-19H | 29.00±0.75 | 16.00±0.55 | 19.00±0.75 |
| OR31×13-19H | 31.00+0.50/-0.70 | 13.00±0.40 | 19.00±0.50 |
| OR31×17-19H | 31.00+0.50/-0.70 | 17.00±0.40 | 19.00±0.50 |
| OR31.8×11.5-19H | 31.75±0.60 | 11.50±0.40 | 19.00±0.50 |
| OR36×10-23H | 36.00±0.50 | 10.00±0.30 | 23.00±0.50 |
| OR36×10-23HU | 36.00±0.50 | 10.00±0.30 | 23.00±0.50 |
| OR36×15-23H | 36.00±0.50 | 15.00±0.30 | 23.00±0.50 |
| OR36×15-23HU | 36.00±0.50 | 15.00±0.30 | 23.00±0.50 |
| OR38×13-19H | 38.00±0.60 | 12.70±0.30 | 19.05±0.60 |
| OR40×16-24H | 40.00±0.60 | 16.00±0.30 | 24.00±0.40 |
| OR41.8x12.5-26.2H | 41.80±0.80 | 12.50±0.50 | 26.20±0.60 |
| OR41.8x17.5-26.2H | 41.80±0.80 | 17.50±0.50 | 26.20±0.60 |
| OR44.5×15-30H | 44.45±0.50 | 15.00±0.30 | 30.00±0.40 |
| OR44.6×16-20H | 44.60±0.50 | 15.90±0.30 | 20.00±0.40 |
| OR44.6×16-20H | 48.00±0.80 | 15.00±0.50 | 30.00±0.80 |
| OR44.6×16-20H | 48.00±0.80 | 16.00±0.50 | 30.00±0.80 |
| OR49×10-34HU | 49.10±0.70 | 10.00±0.35 | 33.80±0.75 |
| OR49×16-34H | 49.10±0.70 | 15.90±0.30 | 33.80±0.75 |
| OR49×16-34HU | 49.10±0.70 | 15.90±0.35 | 33.80±0.75 |
| OR49×19-32H | 49.10±0.60 | 19.00±0.50 | 31.80±0.60 |
| OR49×19-32HU | 49.10±0.60 | 19.00±0.50 | 31.80±0.60 |
| OR49×19-34H | 49.10±0.70 | 19.00±0.35 | 33.80±0.75 |
| OR49×19-34HU | 49.10±0.70 | 19.00±0.35 | 33.80±0.75 |
| OR51.5×13.5-31.5HU | 51.50±0.60 | 13.50±0.40 | 31.50±0.50 |
| OR60×13-40H | 60.00±0.80 | 13.00±0.50 | 40.00±0.75 |
| OR60×18-40H | 60.00±0.80 | 18.00±0.50 | 40.00±0.70 |
| OR60×19.5-40H | 60.00±0.80 | 19.50±0.50 | 40.00±0.70 |
| OR60×25-40H | 60.00±0.80 | 25.00±0.50 | 40.00±0.70 |
| OR63×25-38H | 63.00±1.34 | 25.00±0.50 | 38.00±0.90 |
| OR63×25-38HU | 63.00±1.34 | 25.00±0.50 | 38.00±0.75 |
| OR74×13-39H | 73.66±1.47 | 12.70±0.60 | 38.86±1.32 |
| OR74×20-39H | 73.66±1.47 | 20.00±0.60 | 38.86±1.32 |
| OR78×20-51H | 78.00±1.00 | 20.00±1.00 | 50.50±1.00 |
| OR78×22-51H | 78.00±1.00 | 22.00 | 50.50±1.00 |
| OR78×24-51H | 78.00±1.00 | 24.00±1.00 | 51.00±1.00 |
| OR100×30-60H | 100.00±2.00 | 30.00±0.50 | 60.00±2.00 |
