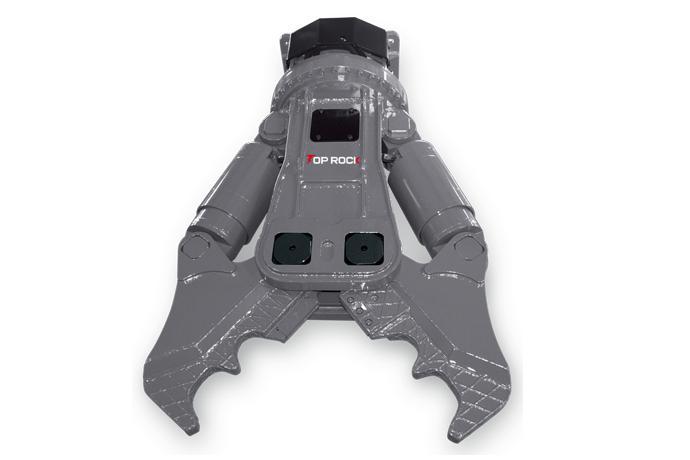

Top Rock Crusher make use of many kind of jaws with a single base unit with universal application system.
Specification
Description | Unit | TRC200Ⅱ | TRC300Ⅱ | TRC400Ⅱ |
---|---|---|---|---|
Operating Weigh with Jaw | kg | 1,680 | 2,630 | 2,750 |
lbs | 3,704 | 5,798 | 6,063 | |
Overall Height with Jaw | mm | 1,942 | 2,480 | 2,660 |
inch | 76.5 | 97.6 | 104.7 | |
Operating Pressure | bar | 300 | 320 | 320 |
psi | 4,226 | 4,550 | 4,550 | |
Required oil flow | ℓ/min | 200 ~ 250 | 250 ~ 300 | 250 ~ 300 |
gpm | 52.80 ~ 66.10 | 66.10 ~ 79.20 | 66.10 ~ 79.20 | |
Max.Opening width | mm | 886 | 1,163 | 1,163 |
inch | 34.90 | 45.80 | 45.80 | |
Crushing Force (End div) | ton | 108 | 171 | 175 |
Rotation Hydraulic Motor | Degree | 360 | ||
oil flow(lpm) | 36 ~ 40(9.50 ~ 10.50 gpm) | |||
Suitable Machine | on | 18 ~ 26 | 26 ~ 32 | 33 ~ 45 |
lbs | 39,683 ~ 57,320 | 57,320 ~ 70,546 | 72,753 ~ 99,208 |
* Above specifications are subject to change without notice.
