This product is manufactured by
SIMACO

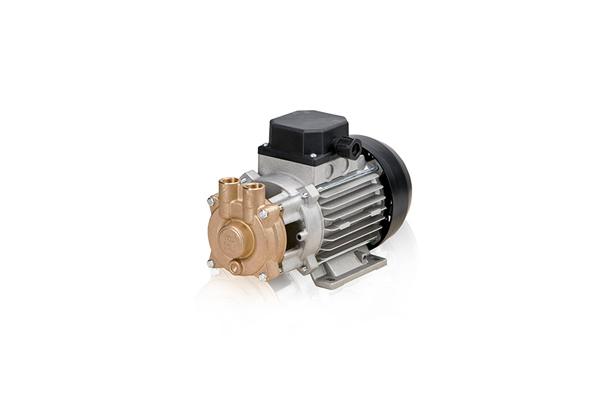

Regenerative turbine electric pumps
Model Name
C44
Series
-
Data
Catalog-SIMACO-Regenerative turbine electric pumps-C
Manufacturer information
SIMACO
Regenerative turbine electric pumps, Vertical regenerative turbine electric pumps, Magnetic driven regenerative turbine electric pumps and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
SIMACO
Brand
-
SKU
142831
Product Name
Regenerative turbine electric pumps
Model Name
C44
Size
-
Weight
-
Product Details
| NAME | TYPE | P2 (KW) 50HZ / 60HZ |
DUAL-FREQUENCY (50/60HZ) |
Q MAX 50HZ | H MAX 50HZ | DN |
|---|---|---|---|---|---|---|
| C 44 | 3 ph | 0.45 / 0.68 | STD | 32 | 45 | 3/8G |
| Cm 44 | 1 ph | 0.45 / 0.68 | STD | 32 | 45 | 3/8G |
CHARACTERISTICS
- Continuous duty S1.
- 2 pole motor.
- Insulation class F.
- Protection IP42 (IP 54 on demand).
- IE3 efficiency class for 3-phase motors >0,75 kW.
- Working tolerance: +/- 10%.
- Liquid temperature (with anti-freeze additive): -20 °C / +90 °C.
- Limit ambient temperature : +40 °C.
- Normal priming, manometer suction up to 5m.
- For clear waters/oils and non-aggressive dilutions, without abrasive substances.
Hydraulic characteristics for water 20°C at nominal pump speed. Tolerance according ISO 9906-2012
ON REQUEST
- Special voltages.
- 60Hz version.
- Dual-frequency.
- Special fluids with temperature <180°C.
- UL/CSA.
MATERIALS
- Casing CuZn
- Impeller CuZn
- Shaft AISI420
WEIGHT
6.5 Kg
IN ACCORDANCE WITH
- EN 60034-1
- EN 60034-30
- EN 60335-1
- EN 60335-2-41
DIMENSIONS
HYDRAULIC PERFORMANCE
More products

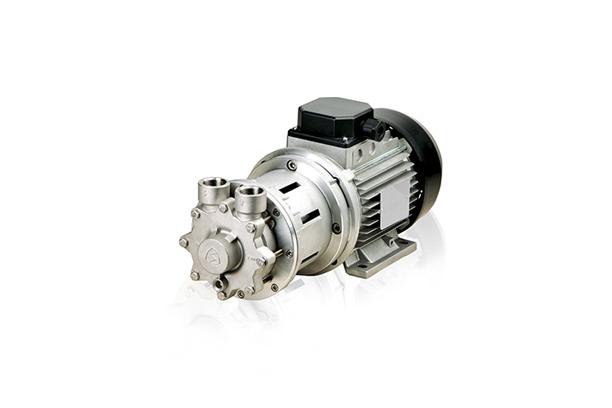

Regenerative turbine electric pumpsCX44

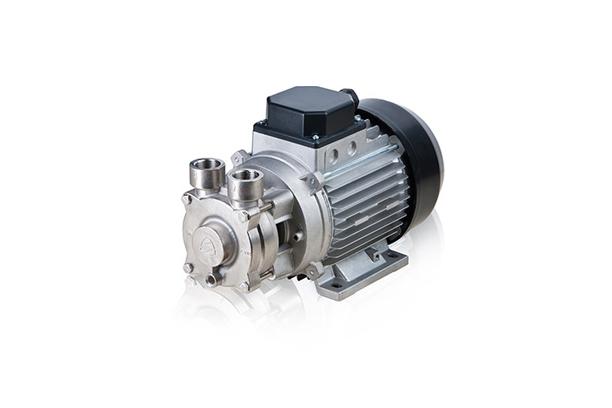

Regenerative turbine electric pumpsCX86
Magnetic driven regenerative turbine electric pumpsMD-CX96

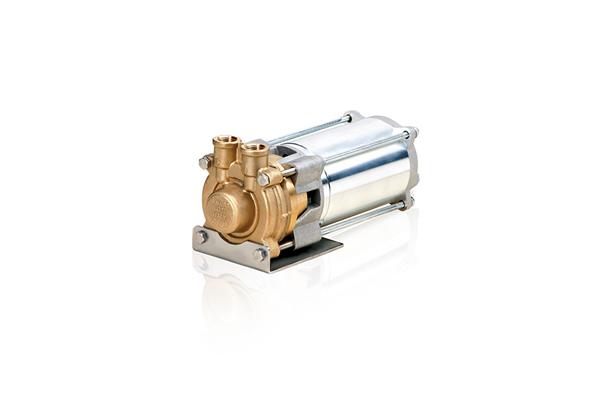

Regenerative turbine electric pumps for cutting and weldingKN37
Regenerative turbine electric pumps for cutting and weldingKN45
Regenerative turbine electric pumps for cutting and weldingKN37 DC24V

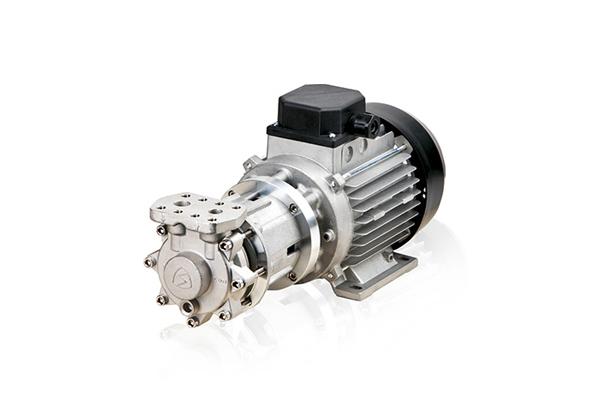

Magnetic driven regenerative turbine electric pumpsMD-CX306

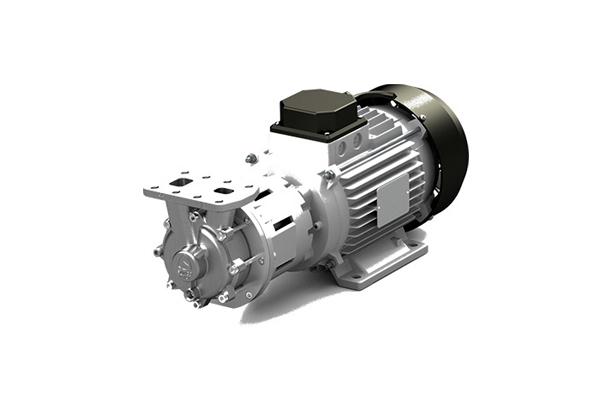

Magnetic driven regenerative turbine electric pumpsMD-CX206

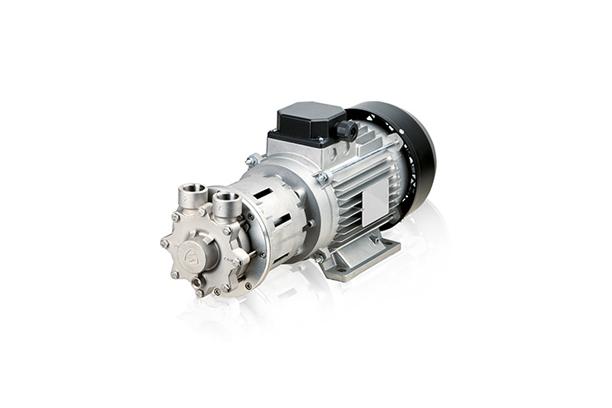

Magnetic driven regenerative turbine electric pumpsMD-CX106
Magnetic driven regenerative turbine electric pumpsMD-CX86
Magnetic driven regenerative turbine electric pumpsMD-CX54
Magnetic driven regenerative turbine electric pumpsMD-CX44
Magnetic driven regenerative turbine electric pumpsMD-CX36

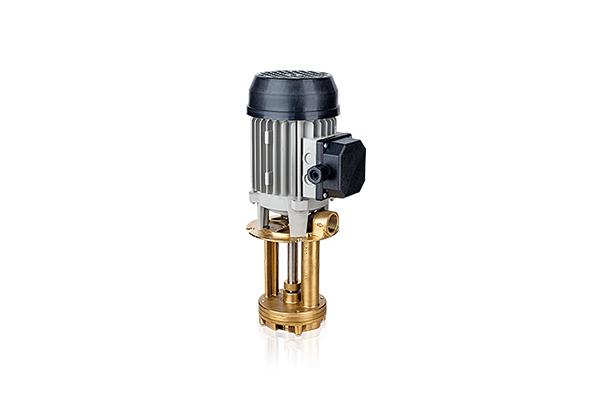

Vertical regenerative turbine electric pumpsVP760
