This product is manufactured by
SIMACO

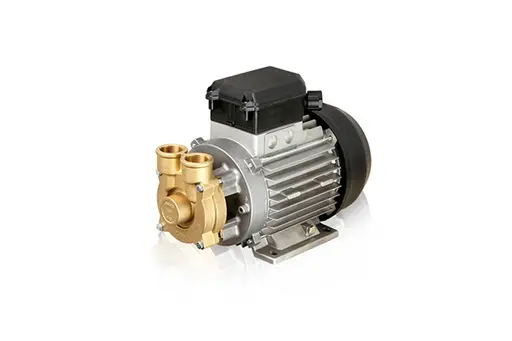

Regenerative turbine electric pumps
Model Name
C74
Series
-
Data
Catalog-SIMACO-Regenerative turbine electric pumps-C
Manufacturer information
SIMACO
Regenerative turbine electric pumps, Vertical regenerative turbine electric pumps, Magnetic driven regenerative turbine electric pumps and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
SIMACO
Brand
-
SKU
142834
Product Name
Regenerative turbine electric pumps
Model Name
C74
Size
-
Weight
-
Product Details
| NAME | TYPE | P2 (KW) 50HZ / 60HZ |
DUAL-FREQUENCY (50/60HZ) |
Q MAX 50HZ | H MAX 50HZ | DN |
|---|---|---|---|---|---|---|
| C 74 | 3 ph | 0.7 / 1.1 | O.D. | 45 | 67 | 3/4G |
| Cm 74 | 1 ph | 0.7 / 1.1 | O.D. | 45 | 67 | 3/4G |
CHARACTERISTICS
- Continuous duty S1.
- 2 pole motor.
- Insulation class F.
- Protection IP42 (IP 54 on demand).
- IE3 efficiency class for 3-phase motors >0,75 kW.
- Working tolerance: +/- 10%.
- Liquid temperature (with anti-freeze additive): -20 °C / +90 °C.
- Limit ambient temperature : +40 °C.
- Normal priming, manometer suction up to 5m.
- For clear waters/oils and non-aggressive dilutions, without abrasive substances.
Hydraulic characteristics for water 20°C at nominal pump speed. Tolerance according ISO 9906-2012
ON REQUEST
- Special voltages.
- 60Hz version.
- Dual-frequency.
- Special fluids with temperature <180°C.
- UL/CSA.
MATERIALS
- Casing CuZn
- Impeller CuZn
- Shaft AISI420
WEIGHT
9.4 Kg
IN ACCORDANCE WITH
- EN 60034-1
- EN 60034-30
- EN 60335-1
- EN 60335-2-41
DIMENSIONS
HYDRAULIC PERFORMANCE
