This product is manufactured by
SIMACO

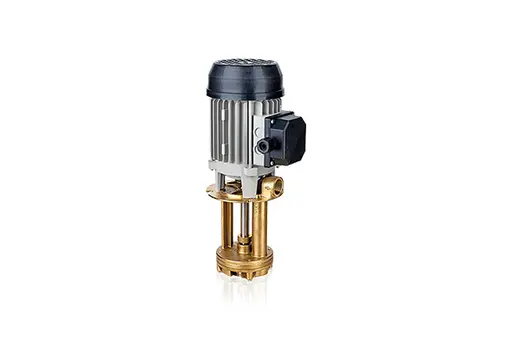

Vertical regenerative turbine electric pumps
Model Name
VP440
Series
-
Data
Catalog-SIMACO-Vertical regenerative turbine electric pumps-VP
Manufacturer information
SIMACO
Regenerative turbine electric pumps, Vertical regenerative turbine electric pumps, Magnetic driven regenerative turbine electric pumps and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
SIMACO
Brand
-
SKU
142842
Product Name
Vertical regenerative turbine electric pumps
Model Name
VP440
Size
-
Weight
-
Product Details
| NAME | TYPE | P2 (KW) 50HZ / 60HZ |
DUAL-FREQUENCY (50/60HZ) |
Q MAX 50HZ | H MAX 50HZ | DN |
|---|---|---|---|---|---|---|
| VP 440 | 3 ph | 0.48/0.70 | O.D. | 42 | 39 | 3/4G |
CHARACTERISTICS
- Continuous duty S1.
- 2 pole motor in this vertical pump.
- Insulation of the electric pump class F.
- Protection IP42 (IP 54 on demand).
- IE3 efficiency class for 3-phase motors >0,75 kW.
- Working tolerance: +/- 10%.
- Liquid temperature (with anti-freeze additive): -20 °C / +150 °C.
- Limit ambient temperature : -10 °C/+40 °C.
- For clear waters/oils and non-aggressive dilutions, without abrasive substances.
ON REQUEST
- Special voltages.
- 60Hz version.
- Dual-frequency.
- Version for oil 200°C.
- Metal fan-cover.
- UL/CSA.
MATERIALS
- Casing dezincification-resistant CuZn
- Impeller dezincification-resistant CuZn
- Shaft ASIS304, IP55
WEIGHT
8.45÷8.95 Kg
IN ACCORDANCE WITH
- EN 60034-1
- EN 60034-30
- EN 60335-1
- EN 60335-2-41
DIMENSIONS
HYDRAULIC PERFORMANCE
