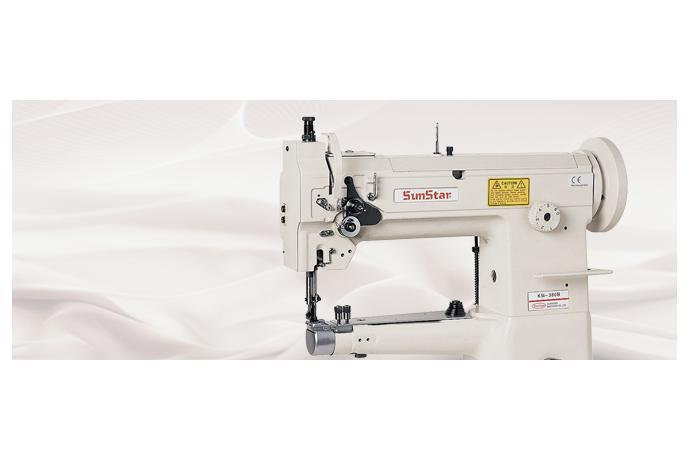

Cylinder Bed, 1-Needle, Unison Feed, Lock Stitch Sewing Machine
Model | Application | Max. sewing speed [spm] | Stitch length [mm] | Needle | Lubrication | Motor | Lift of the presser foot [mm] | Hook | ||||
Hand | Knee | Auto | Drive type | Position | Size | |||||||
KM-380B | Heavy | 2,500 | 0~6 | DPx17 #18 (#11 ~ #23) | Semi-auto | Clutch motor | 8 | 12 | - | Rotary | Vertical | - |
KM-380BL | Heavy | 2,200 | 0~6 | DPx17 #18 (#11 ~ #23) | Semi-auto | Clutch motor | 10 | 15 | - | Rotary | Vertical | x2 |
KM-380BLB | Heavy | 2,200 | 0~6 | DPx17 #18 (#11 ~ #23) | Semi-auto | Clutch motor | 10 | 15 | - | Rotary | Vertical | x2 |
Guaranteed consistent sewing by unison feed mechanism
Small cylinder bed (46mm)
Semi-auto lubrication system
