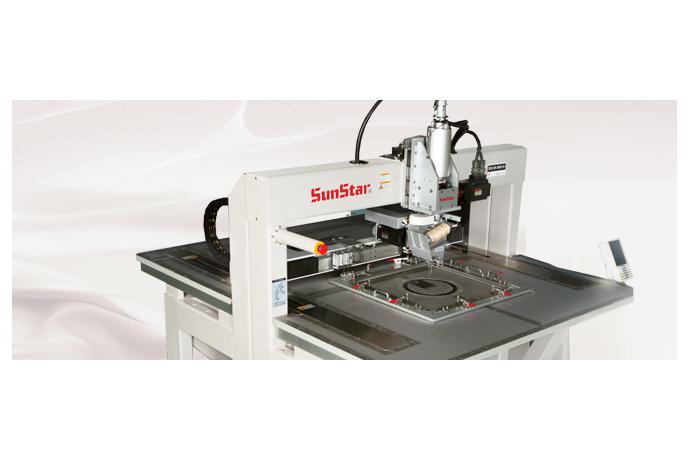

Electronically Controlled, Head Turning,Pattern Sewing Machine.(Arm type)
Model | Application | Max. sewing speed [spm] | Stitch length [mm] | Needle | Lubrication | Auto thread trimming | Motor | Sewing area [mm] | No. of input patterns | No. of input stitches | Lift of the presser foot [mm] | Hook | ||||
Hand | Knee | Auto | Drive type | Position | Size | |||||||||||
SPS/HT-10050A | Medium ~ Heavy | 2,500 | 0.05~12.7 | DPx21,10Nm 130/21 | Auto | Yes | Servo motor | X:1,000 Y:500 | 999 | 30,000 | - | - | 22 | Rotary | Horizontal | x2 (2.5) |
SPS/HT-10060A | Medium ~ Heavy | 2,500 | 0.05~12.7 | DPx21,10Nm 130/21 | Auto | Yes | Servo motor | X:1,000 Y:600 | 999 | 30,000 | - | - | 22 | Rotary | Horizontal | x2 (2.5) |
SPS/HT-15050A | Medium ~ Heavy | 2,500 | 0.05~12.7 | DPx21,10Nm 130/21 | Auto | Yes | Servo motor | X:1,500 Y:500 | 999 | 30,000 | - | - | 22 | Rotary | Horizontal | x2 (2.5) |
SPS/HT-15060A | Medium ~ Heavy | 2,500 | 0.05~12.7 | DPx21,10Nm 130/21 | Auto | Yes | Servo motor | X:1,500 Y:600 | 999 | 30,000 | - | - | 22 | Rotary | Horizontal | x2 (2.5) |
SPS/HT-20050A | Medium ~ Heavy | 2,500 | 0.05~12.7 | DPx21,10Nm 130/21 | Auto | Yes | Servo motor | X:2,000 Y:500 | 999 | 30,000 | - | - | 22 | Rotary | Horizontal | x2 (2.5) |
SPS/HT-20060A | Medium ~ Heavy | 2,500 | 0.05~12.7 | DPx21,10Nm 130/21 | Auto | Yes | Servo motor | X:2,000 Y:600 | 999 | 30,000 | - | - | 22 | Rotary | Horizontal | x2 (2.5 |
