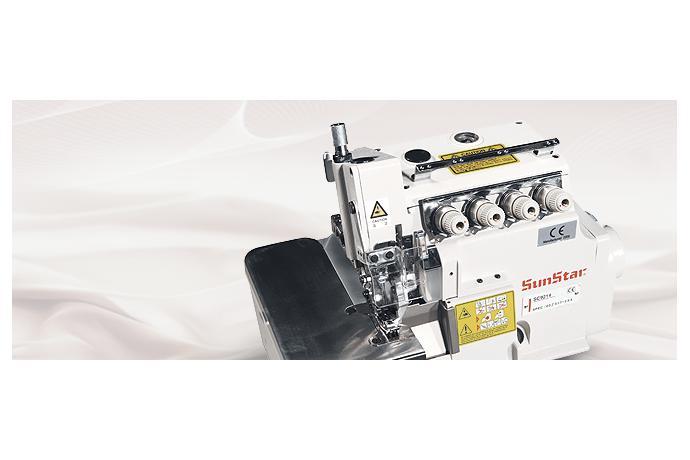

Super High Speed, Overlock Machine
Model | Application | Max. sewing speed [spm] | Stitch length [mm] | Needle | Lubrication | Motor | No. of needles | No. of threads | Needle bar stroke [mm] | Edge width [mm] | Stitch type | Lift of the presser foot [mm] | Hook | ||||
Hand | Knee | Auto | Drive type | Position | Size | ||||||||||||
SC9204-01/223 | Extra light~Light | 8,500 | 1.4~3.8 | Organ DCx27 Nm 65 | Auto | Clutch motor | 1 | 3 | - | 3,4,5 | ISO 504 | - | - | 5 | |||
SC9204-02/223 | Light~Medium | 8,500 | 1.4~3.8 | Organ DCx27 Nm 65 | Auto | Clutch motor | 1 | 3 | - | 3,4,5 | ISO 504 | - | - | 5 | |||
SC9212-02/333 | Light~Medium | 7,500 | 1.4~3.8 | Organ DCx27 Nm 65 | Auto | Clutch motor | 2 | 4 | 2 | 3,4,5 | ISO 512 | - | - | 5.5 | |||
SC9214-03/333 | Medium~Heavy | 7,500 | 1.4~3.8 | Organ DCx27 Nm 65 | Auto | Clutch motor | 2 | 4 | 2 | 3,4,5 | ISO 514 | - | - | 5.5 | |||
SC9316-03/233 | Medium~Heavy | 7,500 | 1.4~3.8 | Organ DCx27 Nm 75~130 | Auto | Clutch motor | 2 | 5 | 3 | 5,6 | ISO 516 | - | - | 5 | |||
SC9316-03/333 | Medium~Heavy | 7,000 | 1.4~3.8 | Organ DCx27 Nm 75~130 | Auto | Clutch motor | 2 | 5 | 5 | 5 | ISO 516 | - | - | 5.5 | |||
SC9316-A04/435 | Heavy~Extra heavy | 6,500 | 1.4~5 | Organ DCx27 Nm 75~130 | Auto | Clutch motor | 2 | 5 | 5 | 5, 6 | ISO 516 | - | - | 7 | |||
SC9316H-A05/535 | Extra heavy | 6,000 | 1.4~5 | Organ DCx27 Nm 75~130 | Auto | Clutch motor | 2 | 5 | 5 | 5 | ISO 516 | - | - | 7 | |||
SC9344-A04/435 | Heavy~Extra heavy | 6,500 | 1.4~5 | Organ DCx27 Nm 75~130 | Auto | Clutch motor | 3 | 6 | 5 x 3 | 4 | ISO 401+514 | - | - | 7 | |||
SCT9214-03/333 | Medium~Heavy | 6,700 | 1.4~3.8 | Organ DCx27 Nm 65 | Auto | Clutch motor | 2 | 4 | 2 | 5, 6, 7 | ISO 514 | - | - | 5.5 | |||
SCT9316-03/233 | Medium~Heavy | 7,000 | 1.4~3.8 | Organ DCx27 Nm 75~130 | Auto | Clutch motor | 2 | 4 | 3 | 4,5 | ISO 516 | - | - | 5 | |||
SCT9316-A04/435K | Heavy~Extra heavy | 6,300 | 1.4~5 | Organ DCx27 Nm 75~130 | Auto | Clutch motor | 2 | 4 | 5 | 5,6 | ISO 516 | - | - | 7 |
