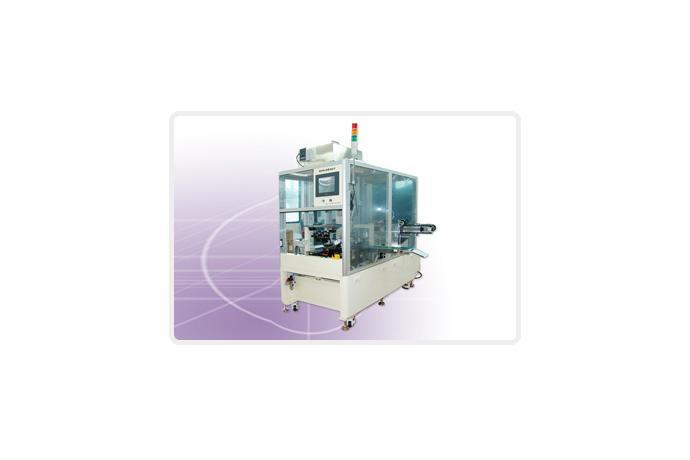

product Image
Auto LCM Assembly Machine
Model Name
-
Series
Module Line
Data
-
Manufacturer information
provider logo
Yujin Discom

LCD, OLED, PDP, VFD, Touch Panel Semi conductor equipment

Problem with product info?
Update request
Manufacturer
Yujin Discom
Brand
-
SKU
32858
Product Name
Auto LCM Assembly Machine
Model Name
-
Size
-
Weight
-
Product Details

This machine is to assemble the BLU with LCD module. LCD module supplied by in line conveyor and pick up, alignment, film peel off automatically in the machine but the BLU should be supplied by operator manually.



SPECIFICATIONS

EQUIP. DIMENSION

1040(W) x 2110(L) X1850(H)mm

WEIGHT

500Kg

TFT LCD GLASS SIZE

1.5~4.0 inch

TFT LCD GLASS THICKNESS

(0.3 X ~1.1)X2mm

ASS’Y ACCURACY

±0.1mm

TACT TIME

3.5sec

LCD film peel off

Auto (peel off tape)

BLU film peel off

Manual

ALIGNMENT

Auto vision aligner

UTILITY

MAIN POWER:220V±10%, 5.5KW, 50/60Hz

AIR : 5~6Kg/㎠ , 350L/min, Ø12Hose / 1line




Yujin Discom
LCD, OLED, PDP, VFD, Touch Panel Semi conductor equipment
Our company established at 1993.5 by the name of Yu-Jin Synthetic machinery. Since then, we have developed and invested in technology to lead Korean LCD manufacturing field. We have already sold and export our machines to SAMSUNG SDI, HYUNDAI, LG and many other company. Now, we will satisfy you with our creative technology from last 10 years know-how. For the best performance and for the highest productivity we make every effort from design to deliver. Yu-Jin DISCOM will be with you and Yu-Jin can manufacture the machine that exactly what you need. Research and development of the value for Human, Technology, Environment is the spirit of Yu-Jin DISCOM.
