product Image

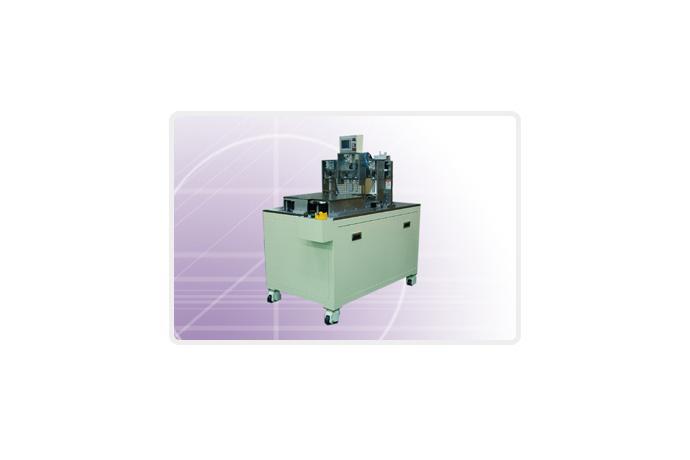

Guide Hole Cutter
Model Name
-
Data
-
Manufacturer information
provider logo
Yujin Discom

LCD, OLED, PDP, VFD, Touch Panel Semi conductor equipment

Problem with product info?
Update request
Manufacturer
Yujin Discom
Brand
-
SKU
32866
Product Name
Guide Hole Cutter
Model Name
-
Size
-
Weight
-
Product Details

This machine is to punch the hole on the film for after process in TSP manufacturing process.

 1. It is easy to change the hole punching pin.
 2. You can adjust the X axis pitch of hole. (manual)
 3. Touch screen applied for easy operation.
 4. Servo motor applied for precise operation.
 5. Hole Y axis pitch distance can be changed to the data. (to manage each model)



SPECIFICATIONS

EQUIP. DIMENSION

760W x 1,120L X1,250H / mm

WEIGHT

200Kg

FILM SIZE

450 x 500mm (Max size)

STAGE SIZE

480 x 480mm

HOLE PITCH ACCURACY

±0.015mm

PUNCHING HOLE SIZE

Ø3 or Ø4

TACT TIME

13 sec

UTILITY

MAIN POWER:1Ø, 220V, 1.0KW, 50/60Hz

Air  : 5~6Kg/㎠, Ø12Hole, 450L/min

Yujin Discom
LCD, OLED, PDP, VFD, Touch Panel Semi conductor equipment
Our company established at 1993.5 by the name of Yu-Jin Synthetic machinery. Since then, we have developed and invested in technology to lead Korean LCD manufacturing field. We have already sold and export our machines to SAMSUNG SDI, HYUNDAI, LG and many other company. Now, we will satisfy you with our creative technology from last 10 years know-how. For the best performance and for the highest productivity we make every effort from design to deliver. Yu-Jin DISCOM will be with you and Yu-Jin can manufacture the machine that exactly what you need. Research and development of the value for Human, Technology, Environment is the spirit of Yu-Jin DISCOM.
