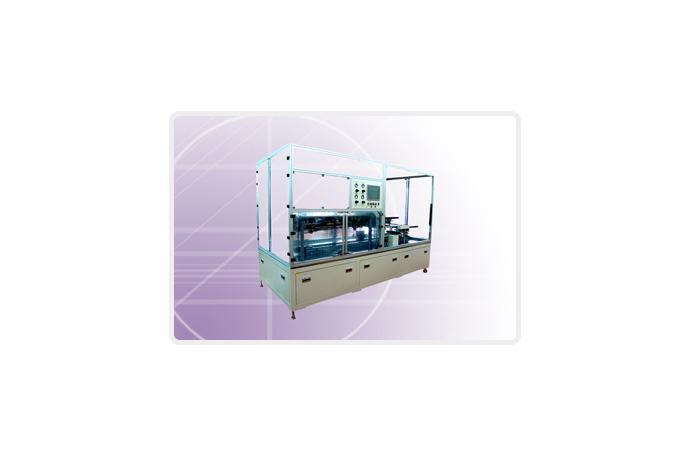

Sheet Assembly Machine
Model Name
-
Data
-
Manufacturer information
provider logo
Yujin Discom

LCD, OLED, PDP, VFD, Touch Panel Semi conductor equipment

Problem with product info?
Update request
Manufacturer
Yujin Discom
Brand
-
SKU
32868
Product Name
Sheet Assembly Machine
Model Name
-
Size
-
Weight
-
Product Details

This machine is to assemble the plastic panel and window with double sided tape. Manually load the plastic panel on lower stage and window loaded on upper 180° turn stage and the attachment process performed after auto alignment completed by X, Y axis roll.

 1. Attach pressure controlled by regulator evenly.
 2. X, Y roll distance adjusted automatically.
 3. Auto alignment - Vision System.


SPECIFICATIONS

EQUIP. DIMENSION

3000(W)mm×1300(L)mm×2190(H)mm

WEIGHT

1500Kg

FILM SIZE

500 x 400 mm(Max)

FILM THICKNESS

0.1 ~ 1.0 mm

FILM STAGE SIZE

580 X 500mm

TACT TIME (S/T)

40 ~ 50sec

ALIGNMENT ACCURACY

±0.05mm

ALIGNMENT

Vision Auto Alignment

ASSEMBLY TIME

Adjustable

UTILITY

MAIN POWER: 1Phase, 220V, 3.0KW, 50/60Hz

AIR : 5~6 Kg/cm2, 600L/min, Ø12 Hose



Yujin Discom
LCD, OLED, PDP, VFD, Touch Panel Semi conductor equipment
Our company established at 1993.5 by the name of Yu-Jin Synthetic machinery. Since then, we have developed and invested in technology to lead Korean LCD manufacturing field. We have already sold and export our machines to SAMSUNG SDI, HYUNDAI, LG and many other company. Now, we will satisfy you with our creative technology from last 10 years know-how. For the best performance and for the highest productivity we make every effort from design to deliver. Yu-Jin DISCOM will be with you and Yu-Jin can manufacture the machine that exactly what you need. Research and development of the value for Human, Technology, Environment is the spirit of Yu-Jin DISCOM.
