HIGH RELIABILITY, ENVIRONMENTALLY SEALED CONNECTOR IN A SMALLER PACKAGE

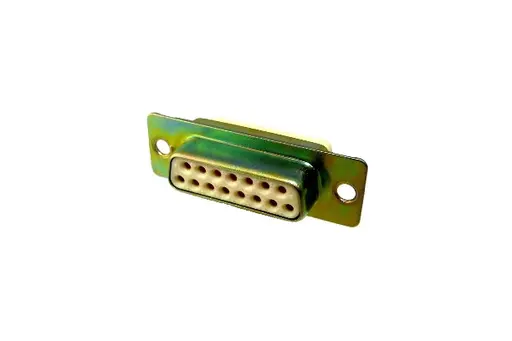

ITT Cannon D-Subminiature high-reliability connectors, known for their D-shaped metal shield and two or more parallel rows of pins or sockets, come in standard, high-density, double-density, and combo-D layouts. These D-Sub connectors are often the most economical solution to any interconnect problem.

ITT Cannon D-Sub high-reliability connectors, many of which are rated to be comparable to MIL-DTL-24308, are ideally suited for both commercial and industrial applications ranging across everything from network and communication ports to satellites, medical equipment, and transportation.

For full details on ITT Cannon D-Sub series 24308 high-reliability connectors, please see the product specifications below.





Features

• PCB Contacts
  • Straight
  • Right angle
  • Crimp
  • Solder
  • U.S. and European spacing
• Shell Platings/Material
  • Zinc plated
  • Cadmium plated
  • Stainless steel
• Dimpled shells for grounding
• Standard density insert arrangements
• High density insert arrangements
• Various contact plating levels of gold over nickel
• Various mating cycle contacts 200-500 mating cycles
• Engineered to be comparable to MIL-DTL-24308 specifications
• Contacts
  • Machined high reliability
  • Stamped and formed, cost effective





Specifications

† For Signal Contacts
++ Up to 40 Amp on power 5 Amp in Coax and High Voltage

All dimensions in inches, unless otherwise stated.



† For Signal Contacts
++ Up to 40 Amp on power 5 Amp in Coax and High Voltage

All dimensions in inches, unless otherwise stated.
