HARSH-ENVIRONMENT SNAP LOCK CONNECTORS

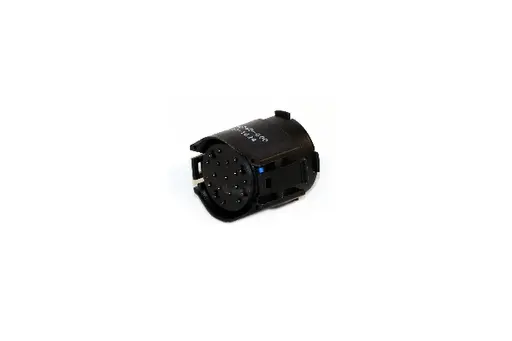

The ITT Cannon Snap Lock Environmental series (SLC) is an environmentally-sealed, circular connector created for printed circuit board (PCB), cable-to-cable or bulkhead applications. The SLC connector series is environmentally-sealed against sand and dust and are designed for use under-the-hood, withstanding harsh off-road contaminants including oil and antifreeze. This SLC connector series is user-friendly and easy to assemble, with an audible and tactile feedback. SLC connector contacts will handle up to 5 amps continuous at a fully-rated temperature range of -40°C to +125°C. The SLC connector series is available as a 5 pin connector and a 10 pin connector. For full details on ITT Cannon SLC connector series snap lock connectors, see the product specifications below.
Features
- High-Quality Circular Connector
With silicone mating, interfacial and wire seals that resists even the harshest of contaminants. - Shared Tooling
SLC connectors use the same proven contact as SLE and CLC connectors and are assembled using the same crimping and low cost extraction tools. - Convertible Mounting
Simple snap-on mounting plates allow users to convert from inline connections to wall mounting, minimizing inventoried components. - Strong Connector Snap Locks
Snap locks are located at either side of the SLC connectors. These locks are molded into the connector bodies and lock the connectors together when mated. To unmate, depress the snap locks simultaneously and pull the connectors apart.
Materials & Finishes
Shell
High-performance thermoplastic body, silicone wire seals
Contacts
Copper alloy
Plating
Selective gold over nickel plating on mating surface, tin/lead over nickel plating on wire crimp area
Electrical Data
Dielectric Withstanding Voltage
1000 Vac rms at sea level
Current Rating
5 Amps continuous at 125ºC
Wire Range Sizes
20-16 AWG
Contact Resistance
10 milliohms maximum
Insulation Resistance
20 megohms minimum (USCAR)
Mechanical
Operating Temperature
-40°C to 125°C (-40°F to 257°F)
Sealing
2-12 inches of 5% salt solution for 24 hours
Wire Sealing Range
.095”-.120” (2.42mm - 3.05mm)
Insulation Strip Length
.210” - .220” (5.33mm - 5.59mm)
Mating Life
25 cycles minimum
Salt Spray
5% solution 96 hours
Heat
125°C +/- 3° 1000 hours
Chemical Resistance
Resistant to most common automotive contaminants
Vibration
10.2 grms 20 hours minimum
Shock
100 g’s 18 shocks for 6 milliseconds
Contact Type
Crimp using automatic, semi-automatic or hand tooling, printed circuit
Number of Circuits
5 to 10
Contact Insertion
From rear with no insertion tool needed
Contact Removal
From rear with low cost hand tool
Contact Retention
25 lbs. (111N) minimum
Polarization
Keys and keyways
Test Parameters
SLC Products are designed to meet Cannon specifications CS-206, CS-210 and CS-216. Items of most general interest to users are designers are listed below.
Test Description
Requirements
Environmental Sealing
Sand and dust MIL-STD-202 method 110 Test Condition A
5% salt spray 96 hours
10 cycles of 24 hours, 90-98% humidity
Steam Cleaning/Pressure Wash 95°C, 375 Cycles 750 PSIG
Solvent Resistance/Immersion (see 3,2,3,9)
Thermal Shock 100 Cycles -40°C to +150°C +/- 3°C
5% salt spray 96 hours
10 cycles of 24 hours, 90-98% humidity
Steam Cleaning/Pressure Wash 95°C, 375 Cycles 750 PSIG
Solvent Resistance/Immersion (see 3,2,3,9)
Thermal Shock 100 Cycles -40°C to +150°C +/- 3°C
Contact Crimp Tensile Strength
The minimum tensile load required to separate the wire from the contact, either by pulling the wire out of the crimp joint or by joint or by breaking the wire within the crimp joint shall not be less than the applicable limits as specified. Wire breakage or contact damage not due to crimping at less than tensile loads shall not constitute a failure.
Vibration
Connectors shall be subjected to random vibration in accordance with MIL-STD-1344, Method 2005.1, test condition VI for 20 hours along each of the following three axes:
Durability
Connectors shall be subjected to 25 cycles of mating and unmating at room temperature. Following this test there shall be no evidence of damage to the contacts, contact plating, connector housing or seals which may prove detrimental to reliable performance of the connector.
Contact
Contacts shall not be displaced greater than 0.030 inches from the connector body when a force of 10 pounds is applied. When this test follows maintenance again the same contacts shall be tested.
Maintenance Aging
Consist of subjecting each wired receptacle to 5 cycles of removal and reinsertion of 20% of the contacts or a minimum of 5 per connector with approved tooling.
Mating and Separating Force
The maximum force required to mate the plug and receptacle shall be 10 pounds. The maximum force required to separate the plug and receptacle shall be five pounds. The rate of travel shall be one inch per minute.
Solvent Resistance Immersion
Connectors shall be subjected to the following fluids at the temperature and length of time specified. Following the fluid dip or immersion, the connectors shall be immersed to a depth of 2 to 12 inches in a 5% salt-water solution for 24 hours at room temperature. At the completion of the salt-water immersion test, while still immersed, the connectors shall meet the insulation resistance requirement specified herein.
(1) Dip: Connectors shall withstand a one second dip and a three minute air dry for a total of 80 cycles.
(2) Immersion: Connectors shall withstand immersion for one hour.
Temperature Life
Connectors shall be subjected to a temperature of 150°C ± 3°C for a period of 1000 hours. At the end of the temperature soak period and after removal from the chamber, the connectors shall meet the insulation resistance and dielectric withstanding voltage requirements specified herein. Connectors shall be operated at rated current throughout the duration of the temperature life test. Upon removal from the chamber at the conclusion of the test, the connectors shall show no visual signs of damage, which may be detrimental to the performance of the connector.
Thermal Cycle
Connectors shall be subjected to 100 thermal cycles from -40°C to +150°C. One cycle shall consist of the transitions from room temperature to -40°C to +150°C, and from 150°C to room temperature. One cycle shall be accomplished in a three-hour period with a minimum stabilization period of 15 minutes at each temperature extreme. The chamber temperature transition rate shall be a minimum of 1.30°C per minute and a maximum of 6.00°C per minute.
NOTE: Specifications and dimensions subject to change.
