ITT Cannon MIKM Series Micro-Miniature Connectors
모델명
시리즈
Connectors
구매 안내
아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.
결제 방법
제조사/판매자에게 문의 바랍니다.
납기 정보
제조사/판매자에게 문의 바랍니다.
배송 정보
제조사/판매자에게 문의 바랍니다.
원산지
제조사/판매자에게 문의 바랍니다.
제품 상세 설명
RUGGED, HIGH-PERFORMANCE MICRO-MINIATURE CONNECTORS

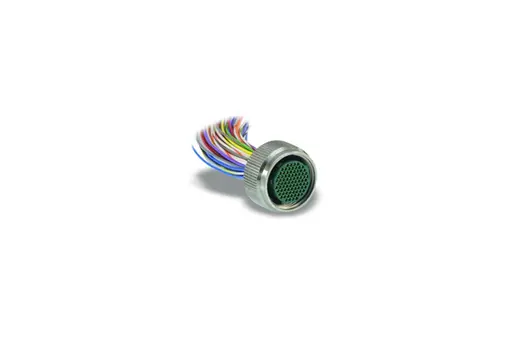

ITT Cannon MIKM series Micro-Miniature circular connectors have a threaded coupling system and are rugged, lightweight, and small, yet offer very high performance. MIKM are good medical connectors and are also suitable for use in avionics, test sets, communication equipment and high-reliability cameras. The heart of this ITT Cannon plug is the POSALINE MicroPin system, offering uncompromised performance and assuring high normal force, excellent wipe, and superior shock and vibration performance. The MIKM series is available as a 7 pin connector, a 55 pin connector and an 85 pin connector. For full details on the ITT Cannon MIKM series Micro-Miniature connectors, see the product specifications below.
Features
- Stainless steel housings
- High density .050" spacing
- Strong threaded coupling system
- 100% electrically tested
- Pre-wired for easy assembly
- Able to be PC mounted
- Fully potted wires for sealing and strain relief
Materials & Finishes
MIL-W-22759/11, color coded per MIL-STD-681 system 1. Uninsulated 25 AWG gold-plated copper per QQ-S-343
Electrical Data
Mechanical
