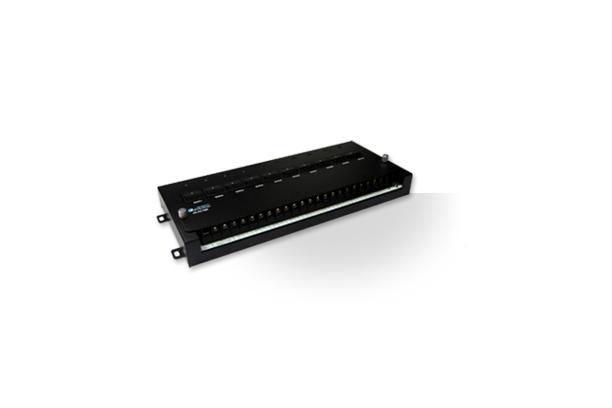

Specifications
분류 | 4Digit | 6Digit |
---|---|---|
Config | - Switch 10EA - LED 10EA - Input : DC24V - Output : DC24V | - Switch 10EA - LED 10EA - Input : AC220V - Output : AC220V |
Size | 300mm(L) * 120mm(W) * 30.6mm(H) | |
Status LED’s | Red: Switch Power ON / Green: Switch Power OFF |
Terminal Connection
회로도
CONSTRUCTION
