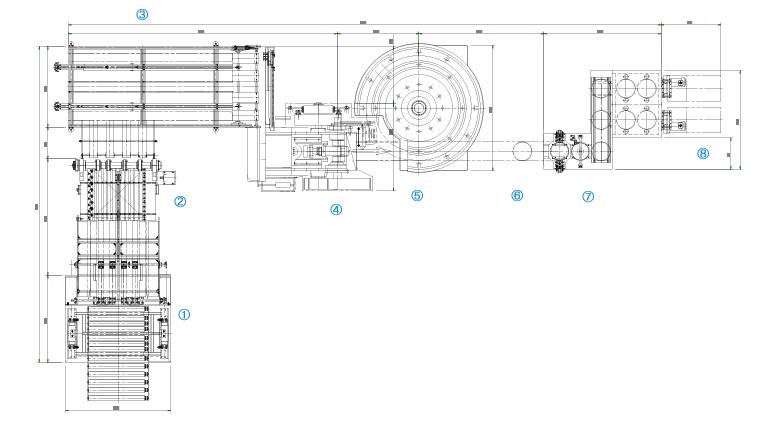

SPECIFICATIONS
(1) AUTO SHEET FEEDER |
|
MODEL |
SS-01 |
CAPACITY |
25~30 SHEETS/MIN |
SHEET THICKNESS |
MAX. T=0.4 |
MAX. LOADING WEIGHT |
2 TON |
HORSE POWER REQUIRED |
3.75 KW |
VACUUM PUMP |
2 HP X 4P 600L/MIN |
MACHINERY WEIGHT |
1500 KG |
FLOOR SPACE |
1670 X 2000 MM |
HEIGHT OVER ALL |
1935 MM |
DOUBLE SHEET DETACTOR |
1 SET |
MAX.SHEET SIZE |
1060 X 1060 MM |
SEPARATING MAGNET |
2 EA |
|
|
(2) GANG SLITTER |
|
MODEL |
SS-08 |
CAPACITY |
30~35 SHEETS/MIN |
CUTTER DIA |
7" DIA, SKD 11 |
CUTTING SPEED |
1036 MM/SEC |
CUTTER MOTOR |
0.75 KW X 4P X 1/10 GEARED MOTOR |
SIDE GAUGE |
1 SET |
NUMBER OF CUTTER |
2 SETS |
MACHINERY WEIGHT |
1000 KG (APPROX.) |
FLOOR SPACE |
1200 X 700 MM |
HEIGHT OVER ALL |
1250 MM |
|
|
(3) BLANK FEED TABLE |
|
HORSE POWER REQUIRED |
2.2 KW |
FLOOR SPACE |
2000 X 1600 MM |
HEIGHT OVER ALL |
1240 MM |
|
|
(4) AUTO STRIP FEED PRESS |
|
MODEL |
SS-09-75 |
CRANK POWER PRESS |
- |
COMBINATION AIR CLUTCH & |
- |
CAPACITY |
50 ENDS/MIN |
RANGE OF CAN DIA |
20L PAIL CAN |
HORSE POWER REQUIRED |
5.6 KW |
FLOOR SPACE |
1950 X 1400 MM |
HEIGHT OVER ALL |
2265 MM |
WITH BLANK FEEDING EQUIPMENT & SCRAP |
|
COMPRESSED AIR |
5 KG/CM |
|
|
(5) DISK CURLING M/C |
|
CAPACITY |
50 ENDS/MIN |
RANGE OF CAN DIA |
20L PAIL CAN |
HORSE POWER REQUIRED |
1.5 KW |
FLOOR SPACE |
2000 X 2000 MM |
HEIGHT OVER ALL |
650 MM |
|
|
(6) CONNECTION CONVEYOR |
|
PULLY BELT CONVEYOR |
|
BELT WIDTH |
250 MM |
HORSE POWER REQUIRED |
0.75 KW |
BELT SPEED |
50 M/MIN |
|
|
(7) LINER & DRYER OVEN |
|
CAPACITY |
50 ENDS/MIN |
HORSE POWER REQUIRED |
3.75 KW |
COMPOUND DRUM |
1 SET |
DRYER TEMPERATURE CONTROL TYPE |
BY THERMISTOR |
THE FUEL OF USE |
ELECTRICITY |
FAN MOTOR |
0.4 KW X 2 |
ELECTRIC HEATER |
20 KW X 2 |
FLOOR SPACE |
1865 X 1570 MM |
HEIGHT OVER ALL |
2452 MM |
COMPRESSED AIR |
5 KG/CM |
|
|
(8) STACKER |
|
HORSE POWER REQUIRED |
0.75 KW |
