Excellent Dispense Volume Reliability

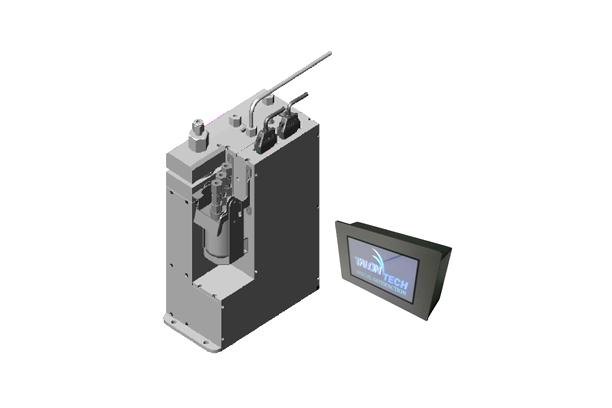

Model TP-32BA
- DC Servo motor pump for constant dispenses
- Automatic Bubble removal System
- Automatic Degassing Function
- Recirculation and Purge stage for Bubbles Removal
- Recirculated PR returns to the Buffer Tank
- Automatically Elimination the Pressure in the Filter
- Step dispenses
- Outer Type Bellows
Configuration
Specifications
Process | Description |
Dispense Volum Range | 0.5cc~7.0cc |
Dispense / Reloade Rate | 0.1cc/sec~7.0cc/sec |
Dispense Volume Resoultion | 0.0025cc |
Dispense Repeatabillity | ≤±0.02(2.2cp, 23℃) |
Viscosity | Max.150cp(With filter) |
Utility | Description |
Electric Power | 24VDC/1A |
Air | 0.1~0.3Mpa |
Resist In/Out | 1/4 Inch Teflon |
Hardware | Description | |
Weight | Touch Pad | 0.64kg |
Pump | 6.46kg | |
Dimension |
Touch Pad | 140x44x88 |
Pump | 120x228x325 |
