제품설명

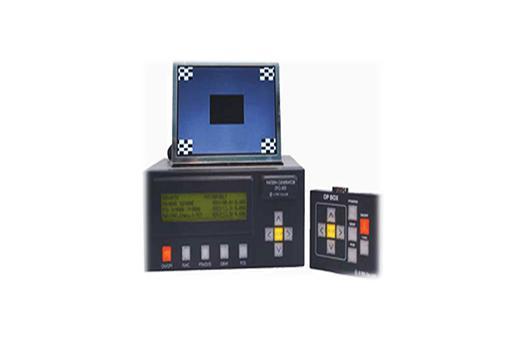

- Monitor, Notebook, Application Panel 검사를 위한 장비.
- 휴대가 용이하며, PC 연동 및 개별 구동이 가능.
제품사양
Signal |
Resolution |
VGA ~ FHD |
Interface |
LVDS 4Port, TMDS Dual-Link |
Pattern |
Logic Pattern, BMP |
Power |
VDD1 / IDD1 |
Max 24V Programmable / Max 3A |
VDD2 / IDD2 |
Max 24V Programmable / Max 3A |
VDD3 / IDD3 |
Max 24V Programmable / Max 3A |
Monitoring |
Voltage / Current |
Sequence |
Programmable |
Function |
Remote Control |
Pattern Up/Down.
Power On/Off.
Frequency & Gray Variation. |
I2C |
Read/Write |
|
