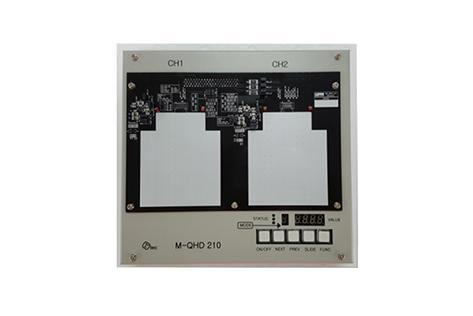

제품설명
- Mobile OLED 패널의 화상 및 기능 검사 장비.
- MIPI 1.5Gbps 2CH 동시 검사 가능.
제품사양
Signal |
Resolution |
VGA ~ QHD |
Interface |
MIPI 4Lane (2CH 대응) |
Pattern |
Logic Pattern, BMP |
Power |
VDD1 / IDD1 |
Max 5V Programmable / Max 0.3A |
VDD2 / IDD2 |
Max 5V Programmable / Max 0.3A |
VDD3 / IDD3 |
Max 5V Programmable / Max 2A |
VBR/PWM |
0~5V Programmable |
Monitoring |
Voltage / Current |
Sequence |
Programmable |
Protection |
OVP, OCP, ESD |
Function |
Remote Control |
Pattern Up/Down.
Power On/Off.
Frequency & Gray Variation. |
I2C |
MTP Read/Write |
|
