FDU-XT Plus
Model Name
-
Series
Satellite Communication Sector
Data
-
Manufacturer information
provider logo
AP SATELLITE

Satellite & Satellite Communication Device Manufacturer, Satellite Smartphone, Satellite Bus System Design and more

Problem with product info?
Update request
Manufacturer
AP SATELLITE
Brand
-
SKU
53702
Product Name
FDU-XT Plus
Model Name
-
Size
-
Weight
-
Product Details

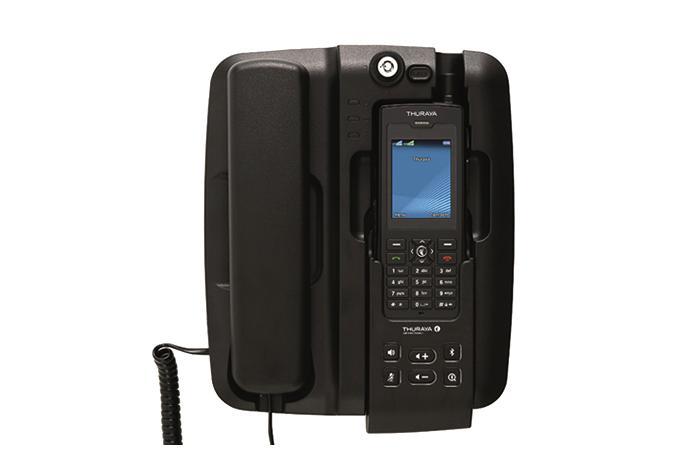

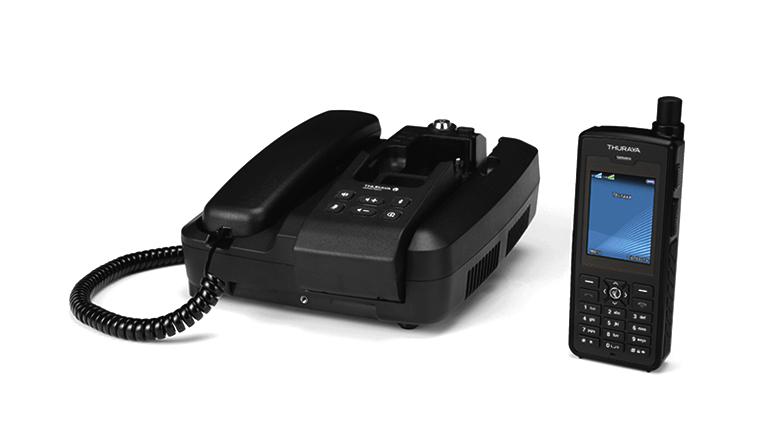

사무실과 가정 등 실내에서도 사용 가능한 위성 휴대폰 도킹(Docking) 시스템

FDU-XT PLUS 육상형(for Land)은 실외에서만 사용 가능했던 위성 휴대폰의 한계를 뛰어넘는 통신 도구로서 위성이 닿기 힘든 실내에서도 언제나 사용 가능한 편리함을 제공한다. 위성 휴대폰(Thuraya XT, XT-PRO, XT-PRO DUAL)과 손쉽게 연결하여 실내에서도 위성을 통한 음성통화, 팩스, 데이터, GmPRS 의 기능을 모두 사용할 수 있다.

1.손쉬운 설치와 편리한 동작

2.Thuraya XT-PRO 와 XT-PRO DUAL 단말기 겸용 고품질의 음성통신 지원

3.사용 중에도 Thuraya XT-PRO 와 XT-PRO DUAL 배터리를 원활히 충전

4.GmPRS 서비스 지원 및 데이터 통신 지원 (9.6kbps)

5.팩스 기기와 PC용 팩스 SW를 이용한 팩스 통신 지원

6.고음질의 스피커 폰 기능

7.PABX 연결 지원(국선 연결)

8.3.5pi 외장스피커 잭

9.Bluetooth 기능 지원

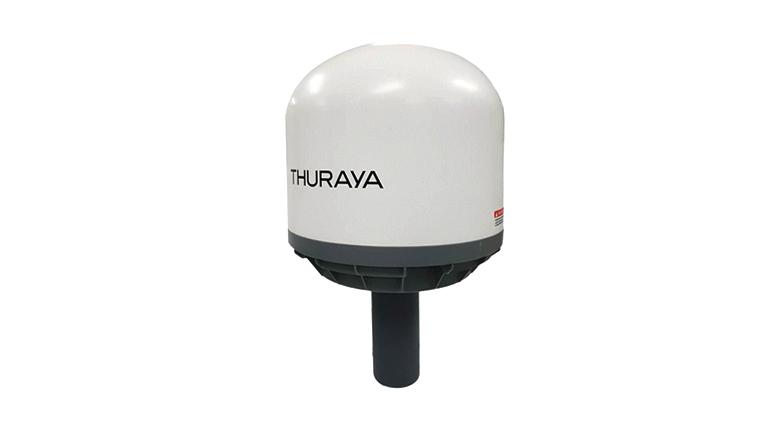

FDU-XT PLUS 선박형(for Marine)은 기존 육상형 Docker에 선박형 Omni 안테나를 연결하여 Thuraya 위성 서비스 지역내의 해양에서도 음성통화, 팩스, 데이터, GmPRS 기능 등을 제공해 국경을 초월한 통신 서비스를 실현시켰다. 해상에서의 통신은 위급상황에서 선원의 안전을 보장해는 주는 필수요소다. FDU-XT PLUS 선박형은 바다에서 생활하는 수많은 선원에게 육지와 연결할 수 있는 유일한 통신 수단이다.



 FDU-XT PLUS
(Land installation)

FDU-XT PLUS
(Marine installation)
Size198x235x85 mm
(W x H x D)
198 x235x86 mm
(W x H x D)
Weight∙3 x RJ-11
External telephone connection
External G3 fax connection
Auxiliary handset connection
∙1xRS-232 serial connection
∙1xUSB PC connection
∙2x SMA connection:

Satellite antenna connection
GPS antenna connection
∙3.5pi external speaker jack
∙FDU-XT PLUS main unit
∙Auxiliary handset
∙SAT antenna with 25m cable
∙GPS antenna with 25m cable
∙Mounting kit
∙Universal power supply

(Input:100-240V AC, Output: 12V DC)
∙USB cable
∙RJ-11-cable
∙Support CD
∙User manual
∙3 x RJ-11
External telephone connection
External G3 fax connection
Auxiliary handset connection
∙1xRS-232 serial connection
∙1xUSB PC connection
∙2x SMA connection:

Satellite antenna connection
GPS antenna connection
∙3.5pi external speaker jack
∙FDU-XT PLUS main unit
∙Auxiliary handset
∙Marine antenna with 25m cable
∙GPS antenna with 25m cable
∙Mounting kit
∙Universal power supply

(Input:100-240V AC, Output: 12V DC)
USB cable
∙RJ-11-cable
∙Support CD
∙User manual
Storage temperature-40℃ to + 70℃-40℃ to + 70℃
Operating temperature-20℃ to +60℃-20℃ to +60℃
Operational humidityUp to 95% non-condensing at 40℃Up to 95% non-condensing at 40℃
