FDU-XT
Model Name
-
Series
Satellite Communication Sector
Data
-
Manufacturer information
provider logo
AP SATELLITE

Satellite & Satellite Communication Device Manufacturer, Satellite Smartphone, Satellite Bus System Design and more

Problem with product info?
Update request
Manufacturer
AP SATELLITE
Brand
-
SKU
53703
Product Name
FDU-XT
Model Name
-
Size
-
Weight
-
Product Details

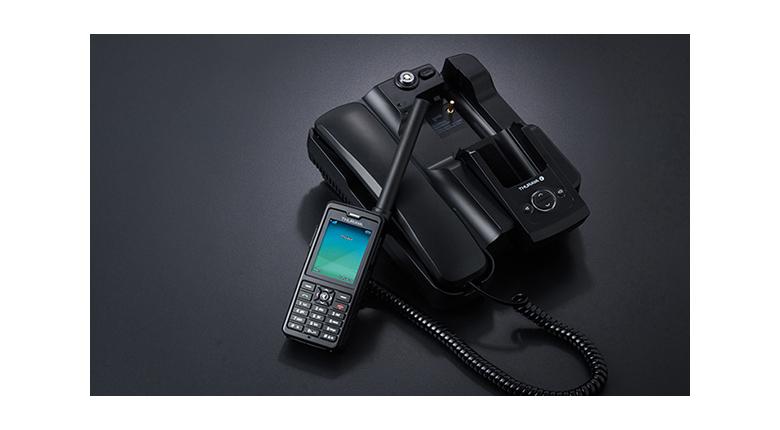

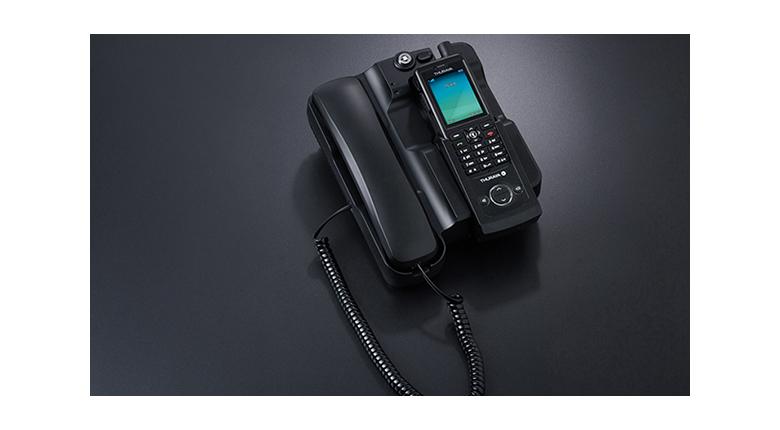

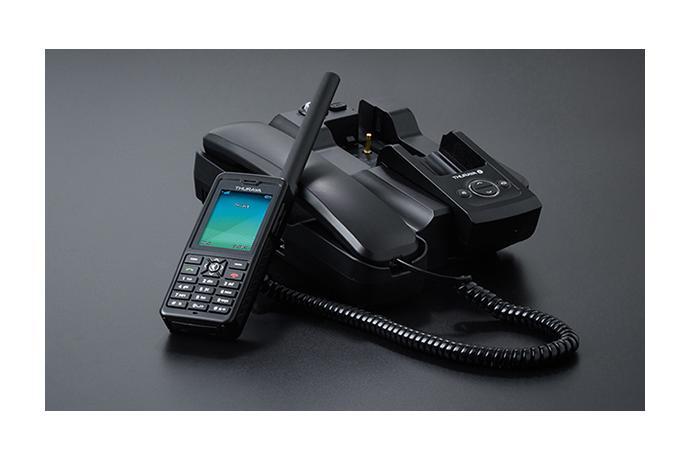

The FDU-XT is a home and office docking adapter that allows you to use the Thuraya XT phones in an indoor setting. Simply connect the FDU-XT with the antennas; then dock your Thuraya XT or XT-PRO handset into the cradle and start to enjoying satellite phone connectivity.

Easy to install and operate, it supports Voice, Data and Fax transmission and comes with SAT and GPS antennas \ with 25m cables to ensure seamless connectivity.

1.Easy to install and operate

2.Compatible with Thuraya XT and XT-PRO satellite phones

3.Supports high-quality voice transmission via auxiliary handset, speakerphone or any analogue extension telephone

4.Charges the satellite phone while docked in the cradle

5.Supports GmPRS services with USB port or DTE

6.Supports circuit switched data service at speeds up to 9.6 kbps

7.Supports selected Group3 analogue fax machines and PC fax at speeds up to 9.6 kbps

8.Supports PABX connection



Dimensions1221 x 176mm
Interfaces• 3 x RJ-11:
- External telephone connection (voice call)
- External G3 fax connection (fax call)
- Auxiliary handset connection (voice call)
• 1 x RS-232 serial connection
• 1 x USB PC connection
• 2 x SMA connectors:
- Satellite antenna connection
- GPS antenna connection
Power• Universal AC/DC power supply: 110 - 240V
• Input power DC 12V/24V/34V
Package Contents• FDU-XT main unit
• Auxiliary handset
• SAT antenna with 25m cable
• GPS antenna with 25m cable
• Universal power supply
• Wall mounting bracket
• USB cable
• RJ-11 cable
• Support CD
• User manua
