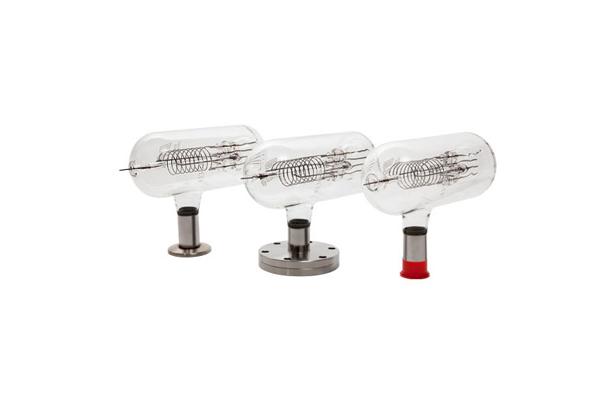

product Image

TOP

Ion Gauge
Model Name
4336k
Series
Vacuum Gauge
Data
-
Manufacturer information
provider logo
ATOVACMFC Contorller, Convection Gauge & Controller, lon Gauge & Controller, Capacitance Manometer, Throttle Valve Controller
Problem with product info?
Update request
Manufacturer
ATOVAC
Brand
-
SKU
129714
Product Name
Ion Gauge
Model Name
4336k
Size
-
Weight
-
Product Details

Ionization Gauge Specifications

Gauge Type

ETI Series4336 and any Bayard-Alpert Gauges

Mounting Position

Vertical

Envelope

Nonex 7720 Glass

Tabulation

3/4", 1" Pyrex or Nonex Glass,

3/4", 1" Kovar.

flanges are available

Collector

0.005"Tungsten

Filament

Thoria-Coated Iridium (single) or Tungsten (dual)

Grid

Tungsten Helix Configuration

Operating Pressure

1.0 x 10(-10) to 1.0 x10(-3) Torr

Bake-out Temperature

250°C

Collector Potential

0 Volts

Shield Potential

N/A

Grid Potential

+150~ + 180 VDC

Filament Current

4 ~ 6 Amps

Filament Voltage

3 ~ 5 VDC

Filament Potential

+30 VDC



Part Number Designation

- Model # : 4336k

T  -> TUBE

N -> NW25

C -> CF 2.75"
