This product is manufactured by
DUKIN INDUSTRIES

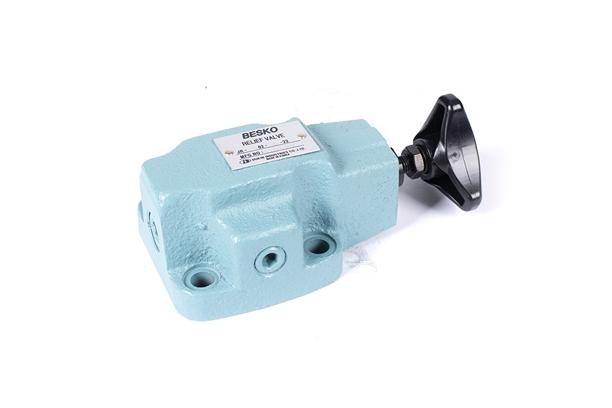

DIRECT OPERATED RELIEF VALVE (REMOTE CONTROL)
Model Name
JR-T02
Data
카탈로그-득인기공-PRESSURE CONTROL VALVE-DIRECT OPERATED RELIEF VALVE
Manufacturer information
DUKIN INDUSTRIES
Hydraulic machine manufacturer, Hand pump, Hydraulic valve, Unit, Cylinder
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DUKIN INDUSTRIES
Brand
-
SKU
125638
Product Name
DIRECT OPERATED RELIEF VALVE (REMOTE CONTROL)
Model Name
JR-T02, JR-G02
Size
-
Weight
-
Product Details
Product features
This valve is used for remote control by connecting to the head connection port of the balance piston type pressure control valve such as relief valve and pressure reducing valve.
Hydraulic circuit diagram
| Pressure drop properties
|
Pressure drop properties
Specification
| Pressure drop properties | Title of diameter | Top of flow rate (ℓ/min) | Pressure adjustment range (kgf/㎠) | Weight (kg) | ||
|---|---|---|---|---|---|---|
| THREAD Connected type | GASKET Attachment type | T | G | |||
| JR-T02-1 | JR-G02-1 | 1/4 | 1.2 | 8~70 | 1.5 | 1.5 |
| JR-T02-3 | JR-G02-3 | 35~210 | ||||
External dimension
Cross section structure
Seal part list
| Item number | Part name | Type/ Part specifications | Amount | |
|---|---|---|---|---|
| JR-T02 | JR-G02 | |||
| 1 | O-ring | 1A P11 | 1A P11 | 1 |
| 2 | O-ring | - | 1B P6 | 1 |
| 3 | O-ring | - | 1B G30 | 1 |
