This product is manufactured by
DUKIN INDUSTRIES

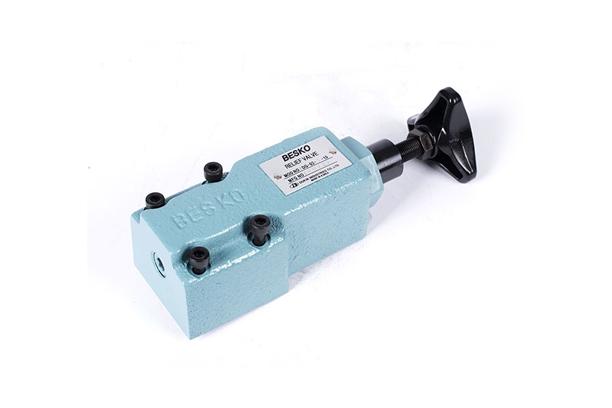

DIRECT OPERATED RELIEF VALVE
Model Name
DG-02
Data
카탈로그-득인기공-PRESSURE CONTROL VALVE-DIRECT OPERATED RELIEF VALVE
Manufacturer information
DUKIN INDUSTRIES
Hydraulic machine manufacturer, Hand pump, Hydraulic valve, Unit, Cylinder
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DUKIN INDUSTRIES
Brand
-
SKU
125642
Product Name
DIRECT OPERATED RELIEF VALVE
Model Name
DG-02, DT-02
Size
-
Weight
-
Product Details
제품특징
이 밸브는 소유량 밸브로 최고 압력 조정 및 안전밸브로 사용됩니다.
최저 조정 압력 특성
| 유량 압력 특성
|
형식 기호
사양
| 형식기호 | 호칭경 | 압력조정범위 (kgf/㎠) | 최대유량 (ℓ/min) | 중량 (kg) | ||
|---|---|---|---|---|---|---|
| THREAD 접속형 | GASKET 취부형 | G형 | T형 | |||
| DT-02-1-10 | DG-02-1-10 | 1/4 | 7~70 | 16 | 1.5 | 1.5 |
| DT-02-3-10 | DG-02-3-10 | 35~250 | ||||
외형 치수도
단면 구조도
