This product is manufactured by
DUKIN INDUSTRIES

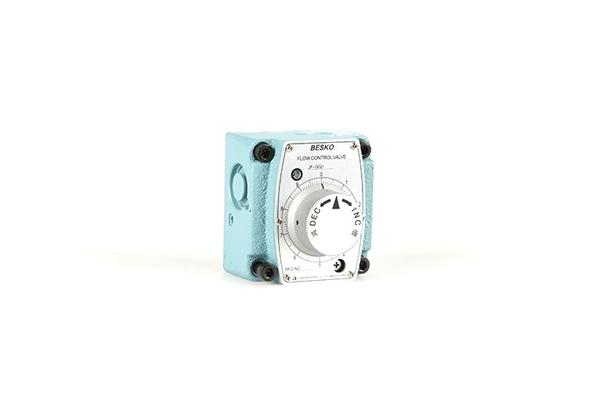

FLOW CONTROL VALVE
Model Name
JF-G02
Data
카탈로그-득인기공-FLOW CONTROL VALVE-JF&JFC
Manufacturer information
DUKIN INDUSTRIES
Hydraulic machine manufacturer, Hand pump, Hydraulic valve, Unit, Cylinder
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DUKIN INDUSTRIES
Brand
-
SKU
125656
Product Name
FLOW CONTROL VALVE
Model Name
JF-G02, JF-G03, JFC-G02, JFC-G03
Size
-
Weight
-
Product Details
제품특징
· 이 밸브는 고압으로 대용량을 제어하며, 또한 미소유량(1/4 → 30cc/min, 3/8 → 80cc/min)까지 제어가 가능하다.
· 압력보상부로서 압력변동, 온도(점도)변화에 관계없이 일정의 제어유량을 가지고 있다.
· 미소유량에서 대유량까지 제어가 가능하고 handel이 4회전함으로서 미세조정, 재설정이 용이하다.
· 희망에 따라 lcok용 key, jump 방지기구 등의 option이 있다.
유압 회로도
| 압력 유량특성
|
형식 기호
사양
| 형식기호 | 호칭경 | 최고사용압력 (kgf/㎠) | 유량조정범위 (ℓ/min) | Free flow (ℓ/min) | 중량 (kg) |
|---|---|---|---|---|---|
| JF(C)-G02-30 | 1/4 | 210 | 0.03 ~ 30 | 30 | 3.9 |
| JF(C)-G03-105 | 3/8 | 0.08 ~ 105 | 105 | 8.3 |
외형 치수도
단면 구조도
