This product is manufactured by
DUKIN INDUSTRIES

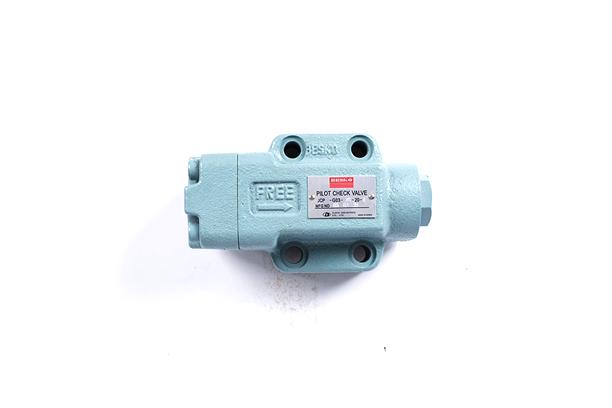

PILOT CHECK VALVE
Model Name
JCP
Data
카탈로그-득인기공-DIRECTIONAL CONTROL VALVE-PILOT CHECK VALVE-JCP&JCPD
Manufacturer information
DUKIN INDUSTRIES
Hydraulic machine manufacturer, Hand pump, Hydraulic valve, Unit, Cylinder
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DUKIN INDUSTRIES
Brand
-
SKU
125671
Product Name
PILOT CHECK VALVE
Model Name
JCP, JCPD
Size
-
Weight
-
Product Details
제품특징
Cracking 압력에 달하면 check valve를 눌러 열고 한방향으로만 작동유를 보낸다. 또 외부로부터의 pilot 압력에 의해 check 밸브를 눌러내려 역방향으로 흐르게 할수도 있다.
유압 cylinder 자중에 의한 하강방지가 필요한 회로 등에 사용한다.
압력 강하 특성
형식 기호
사양
| 형식기호 | 호경 | 최고사용압력 (kgf/㎠) | 최대유량 (ℓ/min) | CRACKING 압력(kgf/㎠) | 중량 (kg) |
|---|---|---|---|---|---|
| JCP(D)-T03-20-20 | ¾ | 250 | 60 | 2 | 3.0 |
| JCP(D)-T06-20-20 | ¾ | 200 | 5.5 | ||
| JCP(D)-T10-20-20 | 1¼ | 400 | 9.6 | ||
| JCP(D)-G03-20-20 | ¾ | 60 | 3.3 | ||
| JCP(D)-G06-20-20 | ¾ | 200 | 5.4 | ||
| JCP(D)-G10-20-20 | 1¼ | 400 | 8.5 | ||
| JCP(D)-F06-20-20 | ¾ | 200 | 6.6 | ||
| JCP(D)-F10-20-20 | 1¼ | 400 | 11.6 | ||
| JCP(D)-F16-20-20 | 2 | 800 | 31.9 |
외형 치수도
단면 구조도
