This product is manufactured by
DUKIN INDUSTRIES
TOP
Model Name
KSH-G04
Data
카탈로그-득인기공-DIRECTIONAL CONTROL VALVE-SOLENOID CONTROLED PILOT OPERATED VALVE-KSH-G04
Manufacturer information
DUKIN INDUSTRIESHydraulic machine manufacturer, Hand pump, Hydraulic valve, Unit, Cylinder
Problem with product info?
Update request
Manufacturer
DUKIN INDUSTRIES
Brand
-
SKU
125683
Product Name

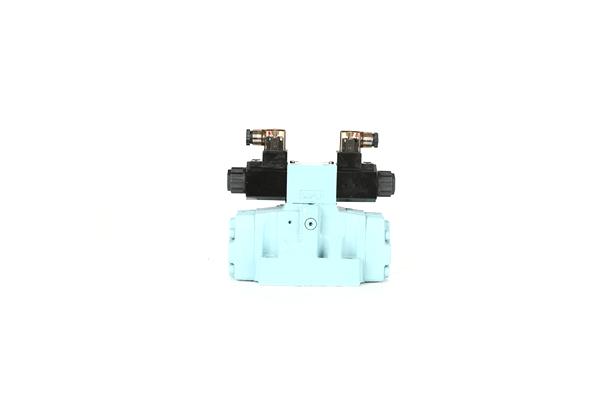

SOLENOID CONTROLED PILOT OPERATED VALVE
Model Name
KSH-G04
Size
-
Weight
-
Product Details
제품특징
· 350kg/㎠, 300ℓ/min의 고압, 대용량을 실현하였습니다.
· 고성능 Pilot Valve의 채택 : Pilot 밸브에 신뢰성이 높은 KSO-G02를 채택하고 있어 수명이 길고 작동이 확실합니다.
· 용이한 Pilot 및 Drain 방식의 교체 : Pilot 방식 및 Drain 방식의 교체는 plug의 제거에 의해 간단히 할 수가 있다.
· ISO 취부 치수 : 취부면은 국제규격 ISO 4401을 채택하고 있다.
압력 강하 특성
압력 유량 특성
형식 기호
사양
| 호칭경 | 형식기호 | 최고사용 압력 | 정격유량 | 최대유량 | |
|---|---|---|---|---|---|
| 06(¾) | KSH-G04 | 350kgf/㎠ | Model표 참조 | 300ℓ/min | |
| Pilot 압력 | 허용배압 | 추천주위온도 | 상대습도 | 최고절환 속도 | |
| 최소 8kgf/㎠ ~ 최대 250kgf/㎠ | 210kgf/㎠ (외부 drain의 경우) | 160kgf/㎠ (내부 drain의 경우) | 0~50℃ | 0~95℃ | 120회/분 |
외형 치수도
단면 구조도
SEAL 부품 일람표
| 품번 | 부품명칭 | 수량 | 부품사양 |
|---|---|---|---|
| 1 | O-ring | 2 | BP10A |
| 2 | O-ring | 4 | BP22 |
| 3 | O-ring | 2 | BP34 |
| 4 | O-ring | 2 | BP9 |
| 5 | O-ring | 3 | BP8 |
