This product is manufactured by
DUKIN INDUSTRIES

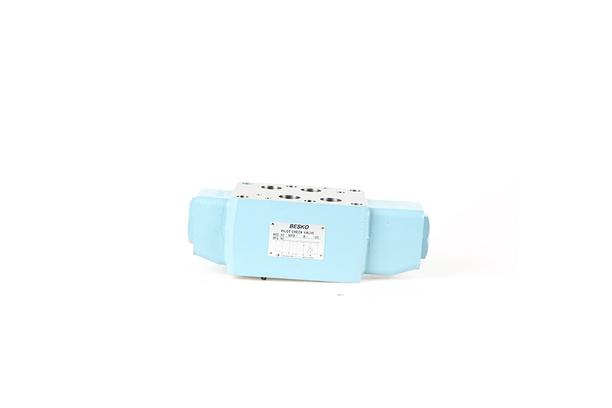

PILOT OPERATED CHECK VALVE
Model Name
MPD-06
Data
카탈로그-득인기공-STACK VALVE- PILOT OPERATED CHECK VALVE-MPD-06
Manufacturer information
DUKIN INDUSTRIES
Hydraulic machine manufacturer, Hand pump, Hydraulic valve, Unit, Cylinder
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DUKIN INDUSTRIES
Brand
-
SKU
126378
Product Name
PILOT OPERATED CHECK VALVE
Model Name
MPD-06
Size
-
Weight
-
Product Details
압력 강하 특성
형식 기호
사양
| 형식기호 | 최고사용압력 MPa(kgf/㎠) | 최대사용유량 (ℓ/min) | CRACKING 압력 MPa(kgf/㎠) | 무게 (kg) |
|---|---|---|---|---|
| MPD-06※-20-20 | 31.5(315) | 500 | 0.2(2) | 13.6 |
| MPD-06※-50-20 | 0.5(5) |
외형 치수도
단면 구조도
O-RING SIZE
| 품번 | 명칭 | 개수 | 부품사양 | ||
|---|---|---|---|---|---|
| 1 | O-ring | 2 | 1BP 38 | ||
| 2 | O-ring | 2 | 1BP 21 | ||
| 3 | O-ring | 4 | 1BP 29 | ||
