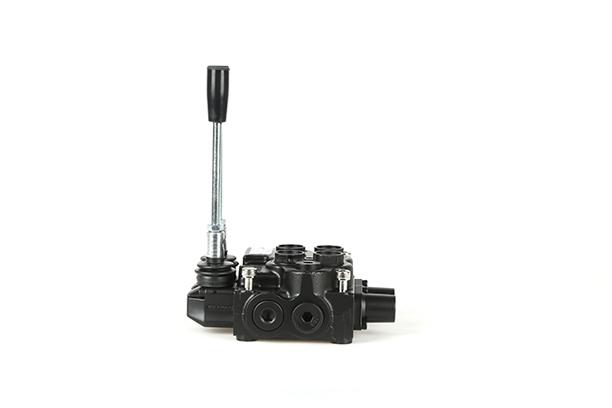

product Image
MANUAL OPERATED VALVE
Model Name
HDM03.2-3-AA-1-L-OC
Series
MANUAL VALVE (VALVES)
Data
카탈로그-득인기공-MANUAL VALVE-MANUAL OPERATED VALVE-HDM03.2-3-AA-1-L-OC
Manufacturer information
provider logo
DUKIN INDUSTRIES

Hydraulic machine manufacturer, Hand pump, Hydraulic valve, Unit, Cylinder

Problem with product info?
Update request
Manufacturer
DUKIN INDUSTRIES
Brand
-
SKU
126408
Product Name
MANUAL OPERATED VALVE
Model Name
HDM03.2-3-AA-1-L-OC
Size
-
Weight
-
Product Details

제품특징

· 수동으로 밸브를 조작하여 유압유의 방향을 변경하는 방향제어 밸브입니다.
· 간단한 구조를 가지고 있으며 메인 릴리프 밸브와 함께 사용 됩니다.



유압 회로도




압력 강하 특성




형식 기호




사양

기본형식SIZE최고압력
(kgf/㎠)
최대유량
(ℓ/min)
허용배압
(kg/㎠)
중량(kg)
HDM03/2-33/8"2504525이하5.4



외형 치수도




단면 구조도
