This product is manufactured by
DUKIN INDUSTRIES

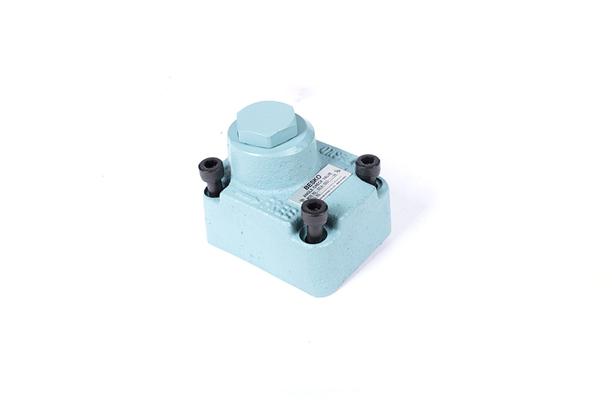

ANGLE CHECK VALVE
Model Name
DCA
Data
카탈로그-득인기공-CHECK VALVE-ANGLE CHECK VALVE-DCA
Manufacturer information
DUKIN INDUSTRIES
Hydraulic machine manufacturer, Hand pump, Hydraulic valve, Unit, Cylinder
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DUKIN INDUSTRIES
Brand
-
SKU
126435
Product Name
ANGLE CHECK VALVE
Model Name
DCA
Size
-
Weight
-
Product Details
Product features
This valve is assembled on the line in right angle, so used to prevent reverse flow of operating oil by opening the check valve to let operating oil flow to one way when cracking pressure reaches.
Hydraulic symbol
| Pressure drop properties
|
Type symbol
Specification
| Type symbol | Standard | Top of working pressure (kgf/㎠) | Maximum flow rate (ℓ/min) | CRACKING pressure (kgf/㎠) | Weight (kg) |
|---|---|---|---|---|---|
| DCA-G03-04-20 | 3/8 | 250 | 60 | 0.4 | 1.8 |
| DCA-G03-50-20 | 5 | ||||
| DCA-G06-04-20 | 3/4 | 200 | 0.4 | 3.4 | |
| DCA-G06-50-20 | 5 | ||||
| DCA-G10-04-20 | 1 1/4 | 400 | 0.4 | 6.1 | |
| DCA-G10-50-20 | 5 |
External dimension
Cross section structure
Seal part list
| NO | Part name | Standard | Part specifications | Amount | ||
|---|---|---|---|---|---|---|
| G03 | G06 | G10 | ||||
| 1 | O-ring | JIS B 2401 | BP21 | AS568-119 | BP32 | 1 |
| 2 | O-ring | JIS B 2401 | BP18 | BP29 | BG40 | 2 |
