This product is manufactured by
DUKIN INDUSTRIES

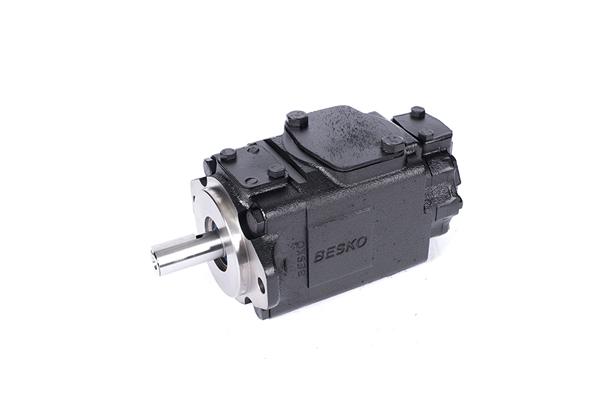

DOUBLE VANE PUMP
Model Name
BT6DC
Data
카탈로그-득인기공-VANE PUMP-DOUBLE VANE PUMP-BT6DC
Manufacturer information
DUKIN INDUSTRIES
Hydraulic machine manufacturer, Hand pump, Hydraulic valve, Unit, Cylinder
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DUKIN INDUSTRIES
Brand
-
SKU
126442
Product Name
DOUBLE VANE PUMP
Model Name
BT6DC, BT6CC, BT6EC, BT6ED
Size
-
Weight
-
Product Details
Product features
· It is a pump that operates two sets of VT6 Pumps having one suction port as the same drive shaft.
· The oil discharged by each PUMP can be supplied to a separate circuit.
Hydraulic circuit diagram
Performance curve
Specification
| model Number | Theory Discharge amount, Top of working pressure, Operating characteristics | revolutions per minute rpm | Weight kg | |||
|---|---|---|---|---|---|---|
| shaft 측 pump | cap측 pump | highest | Lowest | pump | foot | |
| BT6CC | BT6C single pump와 동일 | BT6C single pump와 동일 | 2800 | 600 | 26 | 30.8 |
| BT6DC | BT6D single pump와 동일 | BT6C single pump와 동일 | 2500 | 600 | 37 | 43 |
| BT6EC | BT6E single pump와 동일 | BT6C single pump와 동일 | 2200 | 600 | 55 | 68 |
| BT6ED | BT6E single pump와 동일 | BT6D single pump와 동일 | 2200 | 600 | 65 | 79 |
주)총축입력은 각 Pump의 운전조건에서의 축입력의 합이 됩니다.
