product Image

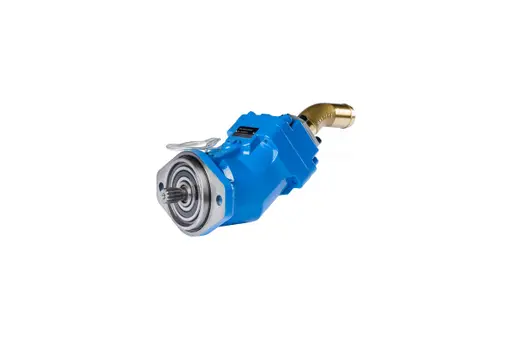

Fixed Displacement Pumps XAi Series (SAE Version)
Model Name
XAi 18
Series
Hydraulic Pumps
Data
Catalog-Hydro Leduc-Fixed Displacement Pumps-XAi Series (SAE Version)
Manufacturer information
provider logo
HYDRO LEDUC

Manufacturer of Hydraulic Components, Hydraulic Pumps, Hydraulic Motors and more

Problem with product info?
Update request
Manufacturer
HYDRO LEDUC
Brand
-
SKU
138517
Product Name
Fixed Displacement Pumps XAi Series (SAE Version)
Model Name
XAi 18, XAi 25, XAi 32, XAi 41, XAi 50, XAi 63
Size
-
Weight
-
Product Details

Description of the product :

Of the same design as the XPi pumps, the XAi fixed displacement pumps are with SAE flange and shaft and are available in displacements from 18 to 63 cc/rev.

Characteristics and advantages :

  • flange according to SAE B (2 bolts, or 4 bolts) –US version,
  • models from 18 to 63 cc/rev.
  • operating pressure 380 bar continuous and 420 bar peak,
  • max. speed of 2300 to 2650 rpm,
  • 7 pistons,
  • compactness allowing installation in environments where space is very limited (PTO),
  • automatic setting of pump direction of rotation (pump can be used CW or CCW),
  • easier installation and start-up,
  • suitable for engine PTO (with by-pass valve).

Applications :

  • truck equipment (examples : truck cranes, forestry cranes, hook lift, skip loader, stabilization cylinders),
  • snow and ice equipment (examples: spreaders, snow blades, turbines),
  • fire trucks,
  • military.
