Auto Clave (Ø550, Ø820)

Auto Clave (Ø550, Ø820)

Model Name

Series

Module Line

View AllView All Series

Data

Manufacturer information

Yujin Discom

LCD, OLED, PDP, VFD, Touch Panel Semi conductor equipment

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

Yujin Discom

Brand

SKU

32851

Product Name

Auto Clave (Ø550, Ø820)

Model Name

Size

Weight

Product Details

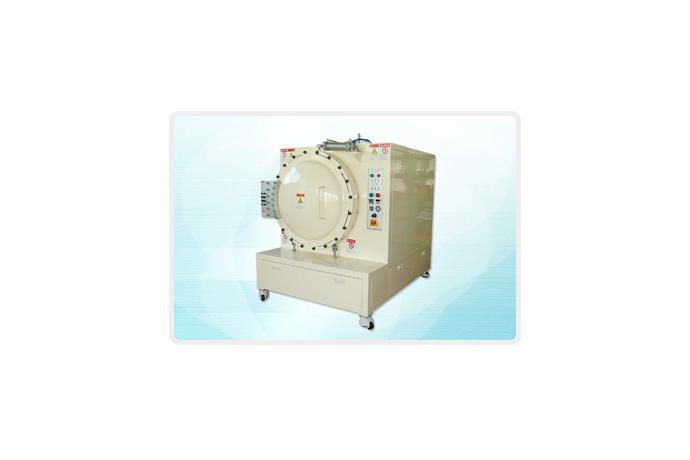

This machine is to remove the air bubble and to strengthen the attached polarizer film with heat and pressure after polarizer attach process.

1. Attach the polarizer perfectly.
2. Pressure can be controlled optionally.
3. Working time can be controlled.
4. Buzzer indicate the work-end automatically.
5. Use the cylinder for lock and unlock the door.
6. Safety valve installed for safe work.

SPECIFICATIONS
	AUTO CLAVE(Ø820)	AUTO CLAVE(Ø550)
EQUIP. DIMENSION	1450(W)mm×1850(L)mm×1720(H)mm	1190(W)mm×1276(L)mm×1535(H)mm
WEIGHT	1100Kg	550Kg
FIXTURE	3 Floors (tray size : 665W * 1170L, tray gap : 130mm)	3 Floors (tray size : 360W * 650L, tray gap :90mm)
CAPACITY	Ø820×1190L	Ø550×660L
DOOR LOCKING	Lock Ring	Lock Ring
DOOR PACKING MATERIAL	Silicon Packing	Silicon Packing
PRESSURE	3~5.5 Kg/㎠ Switch	3~5.5 Kg/㎠ Switch
SAFETY VALVE	GSSF-6(6 Kg/cm2 Setting)	GSSF-6(6 Kg/cm2 Setting)
PRESSURE CONTROL	Regulator Control	Regulator Control
UTILITY	MAIN POWER: 1Phase, 220V, 11.0KW, 50/60Hz	MAIN POWER:1Phase, 220V, 5.0KW, 50/60Hz
UTILITY	AIR : 6_7Kg/cm2, 650/min, Ø12 HOSE Exhaust : 20A	AIR : 6_7Kg/cm2, 250/min, Ø12 HOSE Exhaust : 20A

Yujin Discom

LCD, OLED, PDP, VFD, Touch Panel Semi conductor equipment

Our company established at 1993.5 by the name of Yu-Jin Synthetic machinery. Since then, we have developed and invested in technology to lead Korean LCD manufacturing field. We have already sold and export our machines to SAMSUNG SDI, HYUNDAI, LG and many other company. Now, we will satisfy you with our creative technology from last 10 years know-how. For the best performance and for the highest productivity we make every effort from design to deliver. Yu-Jin DISCOM will be with you and Yu-Jin can manufacture the machine that exactly what you need. Research and development of the value for Human, Technology, Environment is the spirit of Yu-Jin DISCOM.
