Auto Scribe (4Head)
Model Name
-
Size
-
Weight
-
Product Details

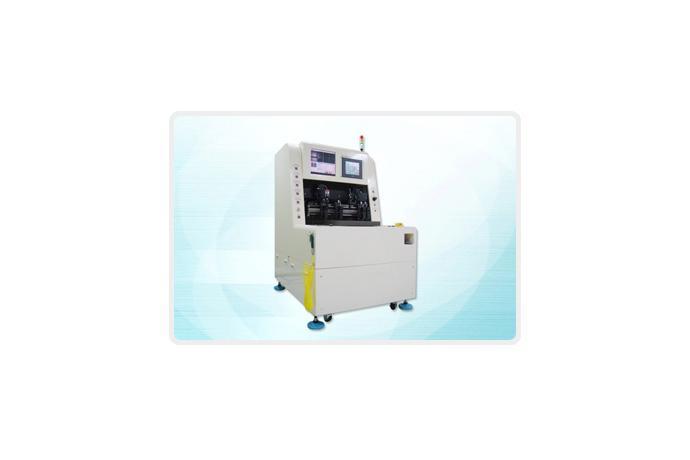

This machine is to scribe the glass fixed on the stage by vacuum with multi wheel head as set X, Y size. (4 Wheel head, head and glass alignment is automatic.


SPECIFICATIONS

EQUIP. DIMENSION

1240(W) * 1610(L) * 1930(H) mm

WEIGHT

1000Kg

GLASS SIZE

470x470(MAX)

GLASS THICKNESS

(0.3~1.1) x 2mm

SCRIBING HEAD

4 Head

STAGE SIZE

500x500mm

STAGE ACCURACY

30㎛/500mm

ALIGN ACCURACY

±9㎛ <auto alignment>

TACT TIME (single face)
(EXCEPT LOAD/UNLOADING)
1 STAGE MOVE = 1 CUT

X,Y 1cut 시         : 19 ~ 23sec
X 2cut ,Y 1cut 시 : 24~28sec
X,Y 2cut 시         : 27~31sec

SCRIBING ACCURACY

±20~30㎛

WHEEL SPEC

Ø2.5 x Ø0.8 x 0.65t x 120° <Tungsten carbide>

UTILITY

MAIN POWER:220V±10%, 6.0KW, 50/60Hz

AIR : 5~8Kg/㎠ , 220L/min
