High Spectral Rate and High Dynamic Range Miniature Spectrometers

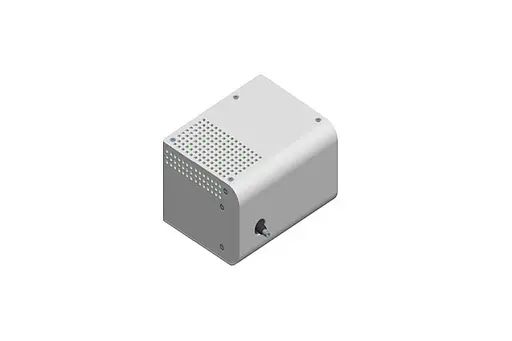

VS70 is a high performance compact fiber coupled spectrometer system covering wide spectral range of 200 to 1050 nm. This OEM optical module is built around Horiba’s type-IV Aberration-Corrected Flat-Field Holographic Ion-Etched concave grating and is specially designed to easily adapt to a large variety of detectors and electronic drivers. This system is fitted with a custom variable order-sorting filter to eliminate higher orders.
The proprietary layout of the VS70 features a single-optics design for superior imaging, peak symmetry and resolution, sensitivity and low-stray light performance, for low-light applications (fluorescence, emission) and high-dynamic applications (absorbance, reflectance).
For OEM Industrial Applications
Ideal for industrial low-light applications such as fluorescence, emission, absorbance, and reflectance.
Examples:
ㆍSemiconductor plasma monitoring
ㆍColorimetry
ㆍBlood and urine analysis
ㆍLiquid chromatography
ㆍFood moisture content analysis
ㆍFlow cytometry
ㆍHigh spectral resolution and system throughput
ㆍCompact size robustness and stability
ㆍHigh Spectral Rate (HSR)
ㆍHigh Dynamic Range (HDR)
ㆍWide spectral covrage from UV to NIR combined with ultra low stray light
ㆍHigh linearity (raw and linearity-correction
ㆍHighly customizable for various applications
OEM Spectrometer Selection Guide
| General Spectrometer Specifications* | |
|---|---|
|
Spectral Coverage |
Standard: UV-VIS (200–860 nm) with 477 l/mm grating, VIS (380–750 nm) with 582 l/mm grating, UV-NIR (200–1050 nm) with double-blazed 365 l/mm grating On request other spectral ranges available; different mechanical integration might needed |
|
Spectrometer Input |
Fiber coupled: FC or SMA; Free space: 12-25-37-50-62-75-100-125-150-200 μm slits, other options available upon request |
|
Spectral Resolution |
2 nm for 365 l/mm grating, 1 nm for 477 l/mm grating, 0.8 nm for 582 l/mm grating (25 μm slit for all) |
| Average Spectral Dispersion |
30.9 nm/mm for 365 l/mm grating, 23.7 nm/mm for 477 l/mm grating 16.3 nm/mm for 582 l/mm grating |
|
Focal Length |
70 mm |
| Options | Selection of high grade sensors: CMOS, B.I. CCD, PDA Input port: SMA, FC, free space, custom input |
|
F/# |
F/2.8 |
| Stray-light Rejection Typical (Maximum) |
0.01% (0.02%) for UV-VIS configuration with 300 μm tall CCD, measured at 700 nm (measured with broad bandpass 510 nm filter, 75 μm slit-width) > 2.4 AU linear range (5% variation) with caffeine 273 nm absorption peak in 10 mm cuvette and D2 lamp |
|
Wavelength Accuracy |
0.2 nm |
|
Software** |
LabVIEW™ acquisition software for initial evaluation (DLLs provided for software integration) |
| Detector Options and Specifications* | ||
|---|---|---|
| Linear back-illuminated CCD with large active area and high sensitivity | ||
| Detector Model | Hamamatsu CCD sensor S11071 with high spectral acquisition speed |
Hamamatsu CCD sensor S10420 with high dynamic range |
| Sensor Format | 2048 x 70 pixels, shorter version available on request |
2048 x 70 pixels, shorter version available on request |
| CCD Pixel Size | 14 x 14 μm | 14 x 14 μm |
| CCD Active Area | 28.7 x 1 mm | 28.7 x 1 mm |
| CCD QE | > 75% for 450-750 nm | > 75% for 450-750 nm |
| Sensor Temperature | Uncooled | Uncooled |
| Maximum Spectral Rate | 760 spectra/s | 223 spectra/s |
| Full Well Capacity | >200,000 e¯ (typical); >175,000 e¯ (minimum) | >225,000 e¯ (sensitivity mode); >375,000 e¯ (high full well mode) |
| Readout Noise | 35 e¯ (typical); 45 e¯ (maximum) | 35 e¯ (typical) & 45 e¯ (maximum) in sensitivity mode; 50 e¯ (typical) and 75 e¯ (maximum) in high full well mode |
| Digitization | 16-bit | 16-bit |
| Dynamic Range (FW/RN) | 6,000:1 (typical) | 7,000:1 (typical) in sensitivity mode; 5,500:1 (typical) in high FW mode |
| Non-linearity (measured on each system) |
< 0.4% (corrected) | < 0.4% (corrected) |
| Dark current @ (25°C) | 50 e-/pix/s (typical); 500 e-/pix/s (maximum) | 7 e-/pix/s (typical); 70 e-/pix/s (maximum) |
| Communication | USB2 | USB2 |
| Environmental Conditions | Operating temperature 15° C to 40° C ambient Relative humidity <70% (non-condensing) Storage temperature -25° C to 45° C |
|
| Power Requirements | Molex connector (24 VDC) | |
* HORIBA Instruments has a policy of continuous product development, and reserves the right to amend part numbers, descriptions and specifications without prior notice.
**No LabVIEW™ license is needed to run our acquisition software.
Quantum Efficiency
Mechanical Drawings
