INTERMATEABLE WITH ALL 38999-STYLE SERIES I CONNECTORS

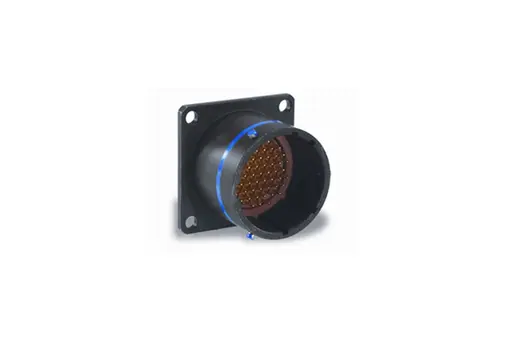

ITT Cannon KJL 38999-Style Series I connectors offer high-density contact arrangements in a lightweight miniature circular connector. IKJL series connectors were originally designed for military vehicles are an industry standard for military and aerospace/harsh enviornment applications, built to tackle the most extreme conditions with exceptional versatility.
They are quick-mating, have three-point bayonet coupling, are environmentally sealed, and operate across a wide temperature range.
These 38999-Style connectors are intermateable with Souriau connectors and 38999-Style Series I connectors.
Features
- Quick-Mating
A three-point bayonet coupling system not only makes the KJL quick-mating but also provides an audible and tactile “click,” along with visual verification of mating via a sighting hole and high-visibility, bright blue bayonet pins.
- Shielded Interconnect
KJL plugs feature high-quality grounding springs that provide 360-degrees of EMI/RFI-shielding protection. These springs ground the barrel of the KJL plugs to the inside wall of the KJL receptacles with a wiping action that offers effective protection from reception or transmission of electronic noise.
- Many Contact Layouts and Styles
KJL connectors come in a wide variety of contact sizes and layouts up to 128 contacts. Printed circuit board, fiber optic, thermocouple, and co-ax style contacts are available for special applications.
- Utilizes High-Quality Military Contacts
For standard applications, KJLs come with crimp-style military contacts designed to resist bending and provide reliable performance under the most rigorous conditions.
- Corrosion-Resistant
KJLs are available with cadmium over nickel plating that has met and passed the 500 hour military salt spray corrosion tests.
- Full Metal Contact Retention Clips
Cannon’s KJL connectors utilize full metal retention clips in their insulators, which assures the highest level of serviceability and unparalleled contact retention.
Materials & Finishes
Shell |
Aluminum Alloy |
Bayonet Pins |
Passivated stainless steel per QQ-S-763 |
Plating |
A - Clear chromate over cadmium over electroless nickel per QQ-P-416 B - Olive drab chromate over cadmium over electroless nickel per QQ-P-416 A296 - Black Zinc Cobalt F - Electroless nickel per QQ-N-290 (N - Commercial) |
Contacts |
Copper alloy |
Platings |
Gold plate, 50 microinches per MIL-G-45204 type II, grade C, class 1 |
Insulator |
Hard plastic wafer which contains metal retention tines for high-reliability retention of crimp contacts |
Grommet & Seals |
Silicone-based elastomer |
Grommet & Springs |
Beryllium copper (grounded plug only) |
Electrical Data
Test Voltage (Unmated Conditions)
Operating Voltage
Current Rating by contact size and wire accomodations (Test Amps)
Contact Resistance of mated contacts end-to-end
Insulation Resistance 5,000 megohms minimum
Mechanical
Operating Temperture |
A Plating -65°C to 150°C (-85°F to 302°F) B Plating -65°C to 175°C (-85°F to 347°F) F (N) Plating -65°C to 200°C (-85°F to 392°F) |
Sealing |
Against sand, dust per MIL-STD-202 & ice |
Wire Sealing Range
Insulation Strip Length
Mating Life
500 cycles minimum
Salt Spray
Finish A: 48 hour per MIL-STD-1344A method 1001 condition B
Finish B: 500 hour per MIL-STD 1344A method 1001 condition C
Finish F: 48 hour per MIL-STD-1344A method 1001 condition B
Heat
Finish A: 150°C (302°F)
Finish B: 175°C (347°F)
Finish F: 200°C (392°F) 1000 hours to MIL-STD-1344 method 1005
Chemical Resistance
Lubricating oils, hydraulic fluids, coolants, deicing fluids per MIL-STD-1344A Method 1016 condition a-1
Sine Vibration
30g at ambient temperature with simulated accessory load
Random Vibration
49.5 grms at ambient temperatures
Shock
300g ±15% half sine wave magnitude for 3 ±1 milliseconds
EMI Shielding Effectiveness
100 MHz to 10 GHz - minimum attenuation of 50dB effectiveness
Contact Type
Crimp, fiber optic, co-ax, twinax, or printed circuit
Number of Circuits
3 to 128
Contact Insertion
Insertion from rear of connector with simple plastic or high-quality metal hand tool. Extraction from rear with simple plastic or high-quality metal hand tools.
Contact Retention
Per MIL-DTL-38999 tested to MIL-STD-1344A method 2007
NOTE: CT/CA/MS receptacle contacts are bonded into the insulator.
Polarization Five keyways with optional minor keyways rotation (Note insert and main keyway remain fixed)
Cross Section
