MINIATURE RACK AND PANEL CONNECTORS DESIGNED FOR BLIND MATE APPLICATIONS

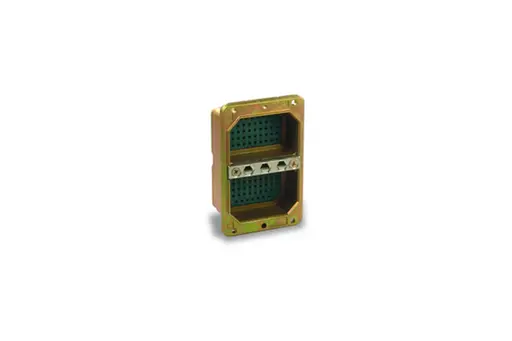

ITT Cannon DPX ARINC 404 rack and panel connectors comes in single, two, three and four gang versions and can accommodate up to 424 contacts. ITT Cannon DPX ARINC 404 rack and panel connectors feature the LITTLE CAESAR contact assembly for rear insertion, release and extraction of crimp type contacts. DPXA shells utilize their keystone-shaped for polarization posts that are capable of providing up to 99 polarization positions.
Features
- Miniature Rack and Panel connector designed for Blind Mate applications
- Available with captive solder type contacts (DPX) or removable contacts (DPXMA/DPXME) featuring in the Little Caesar rear release contact retention assembly
- Standard contact tooling (BKA, DPX, and SGA use the same tooling)
- Single to Multiple Gang configurations available
Materials & Finishes
Shell Plating
Cadmium plate with yellow chromate, DPX*ME = Olive drab
Insulator
DPXA/B/2 = Melamine, Phenolic; DPX*MA/ME = Diallyl phthalate, or epoxy
Electrical Data
Operating Voltage
0V - 300V
Number of Signal Contacts (Min/Max)
0 - 424
Mechanical
Application / Market
Aerospace
Shell Style
Receptacle, Float Mount Receptacle, Hard Mount Plug, Float Mount Plug, Hard Mount
Durability
500 Mating Cycles
Power & Signal in Same Layout
Yes
Contact Style / Termination
Crimp, machined, solder, Printed circuit solder, RF (Co-Ax, Twinax, Triax, and Quadrax), Fibre Optic
Environmental
Operating Temperature
-55ºC to +125ºC
