SealingEnvironmental

Operating Temperature-55ºC to +125ºCRECTANGULAR CONNECTOR SUITED FOR HIGH-RELIABLE MIXED POWER AND SIGNAL I/O

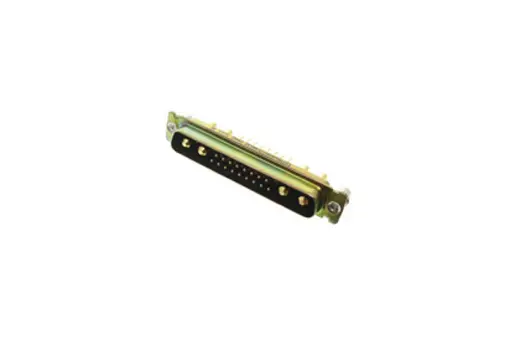

ITT Cannon Combination D-subminiature rectangular connectors offer the advantages of an industry-standard shield I/O interconnect, with the flexibility of a customized special, designed for both commercial/industrial applications and military/aerospace applications but have found worldwide acceptance in a multitude of applications ranging from office equipment to satellites. These D-subminiature connectors are ideal for applications that require optimization of space while improving overall shielding.

Combination D-subminiature connectors accomplish this by combining multiple interconnect types into one fully-shielded product, decreasing the number of I/O interfaces and reducing the possibility of EMI/RFI leakage.





Features

PCB Contacts

• Straight
• Right angle (US and European spacing)

Shell Platings/Material

• Zinc plated
• Cadmium plated
• Stainless Steel
• Dimpled shells for grounding

Various Insert Combinations Available Mixing Signal with Power/Coaxial Contacts

Contacts

• High power
• High voltage
• Coaxial 50 & 75 Ohm
• Machined high reliability
• Stamped and formed, cost effective
• Pre-installed or self-installed
• Various Contact plating levels of gold over nickel
• Various Mating cycle contacts 200-500 mating cycles





Specifications

† For Signal Contacts
++ Up to 40 Amp on power 5 Amp in Coax and High Voltage

All dimensions in inches, unless otherwise stated.



† For Signal Contacts
++ Up to 40 Amp on power 5 Amp in Coax and High Voltage

All dimensions in inches, unless otherwise stated.
