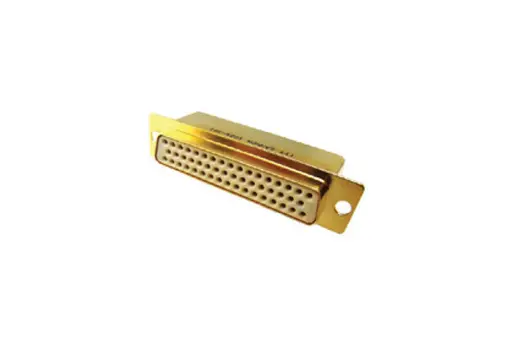

HIGH RELIABILITY RECTANGULAR CONNECTOR SUITED FOR SPACE

ITT Cannon builds high performance D-Sub connectors for space applications per NASA & SAE standards. These high-reliability connectors meet stringent tests for outgassing and residual magnetism.

ITT Cannon’s space-grade D-Sub connectors were derived from MIL-DLT-24308 standards and available in a wide range of standard to double density configurations for cable-to-cable and printed circuit board applications.

The DNM and DNMB connector series are non-magnetic interconnects suitable for space, launch system, military, and aerospace applications.





Features

• PCB Contacts
  • Straight
  • Right angle (US and European spacing)
• Shell Platings/Material
  • Zinc plated
  • Cadmium plated
  • Stainless Steel
  • Dimpled shells for grounding
• Various Insert Combinations Available Mixing Signal with Power/Coaxial Contacts
• Contacts
  • High power
  • High voltage
  • Coaxial 50 & 75 Ohm
  • Machined high reliability
  • Stamped and formed, cost effective
  • Pre-installed or self-installed
  • Various Contact plating levels of gold over nickel
  • Various Mating cycle contacts 200-500 mating cycles



Specifications

† For Signal Contacts
++ Up to 40 Amp on power 5 Amp in Coax and High Voltage

All dimensions in inches, unless otherwise stated.



† For Signal Contacts
++ Up to 40 Amp on power 5 Amp in Coax and High Voltage

All dimensions in inches, unless otherwise stated.
