HARSH-ENVIRONMENT SNAP LOCK CONNECTORS

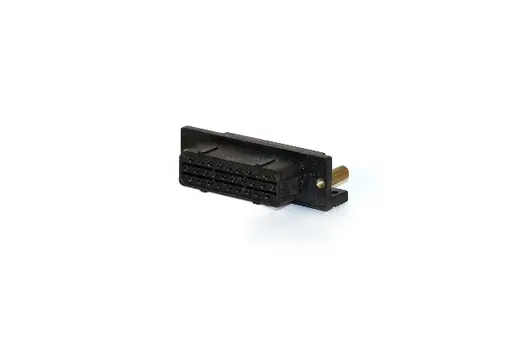

The ITT Cannon Snap Lock Environmental series (SLE) is an environmentally sealed, rectangular connector created for printed circuit board (PCB), cable-to-cable or bulkhead applications. SLE snap lock connectors are suitable for demanding under-the-hood applications and are easy to assemble with an audible and tactile feedback. Snap lock connectors will handle up to 5 amps continuous at a temperature range of -40°C to +125°C. SLE snap lock connectors are available as a 19 or 28 pin connector. For full details on ITT Cannon SLE Snap Lock connectors, see the product specifications below.
Features
- Rectangular Connector Bodies
The SLE snap lock connector's rectangular design is ideally suited for easy printed circuit board (PCB) layouts for both straight off-the-board and right angle applications, since the contacts are precisely arranged in rows.
- Keyable Connector Bodies
Four simple, slotted keys and keyways are supplied with the connectors to allow the user to key connector halves. This prevents connectors of the same shell size, mounted in close proximity to each other, from being mated with the incorrect connector and damaging the sophisticated electronic controls modules.
- Clamshell-Style Plug Cable Clamps for any Cable Orientation
Plug cable clamps are ordered as part of the connector and are available in five different styles: up, down, right, left and straight cable exits. This saves space and allows for easy mating in crowded under-the-hood environments. See Create Part Number for more details.
- Strong Connector Snap Locks
Snap locks are located at either end of the SLE connector. These locks are molded into the connector bodies and lock the halves together when mated. To unmate, just depress the snap locks simultaneously and pull the halves apart.
Materials & Finishes
Shell
High-performance thermoplastic body, silicone wire seals
Plating
Selective gold over nickel plating on mating surface, tin/lead over nickel plating on wire crimp area
Electrical Data
Dielectric Withstanding Voltage
1000 Vac rms at sea level
Current Rating
5 Amps continuous at 125ºC
Wire Range Sizes
20 - 16 AWG
Contact Resistance
10 milliohms maximum
Insulation Resistance
20 megohms minimum (USCAR)
Mechanical
Operating Temperature
-40°C to 125°C (-40°F to 257°F)
Sealing
2 - 12 inches of 5% salt solution for 24 hours
Wire Sealing Range
.095” - .120” (2.42mm - 3.05mm)
Insulation Strip Length
.210” - .220” (5.33mm - 5.59mm)
Mating Life
25 cycles minimum
Salt Spray
5% solution 96 hours
Heat
125°C +/- 3° 1000 hours
Chemical Resistance
Resistant to most common automotive contaminants
Vibration
10.2 grms 20 hours minimum
Shock
100 g’s 18 shocks for 6 milliseconds
Contact Type
Crimp using automatic, semi-automatic or hand tooling, printed circuit
Number of Circuits
19 & 28
Contact Insertion
From rear, with no insertion tool needed
Contact Removal
From rear, with low cost hand tool
Contact Retention
25 lbs. (111N) minimum
Polarization
Moveable molded keys and keyways
