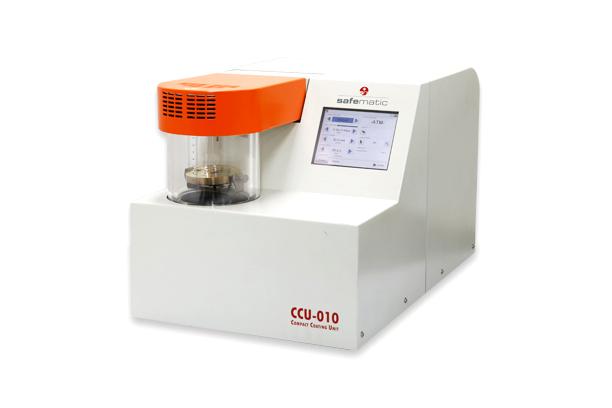

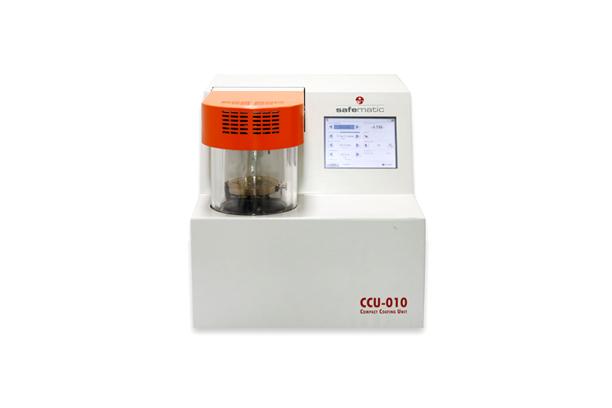

Ion Sputter Coater-II (PVD for R&D)
설명 : Ion Sputter Coater/Thermal-evaporation/Glow-discharge, Plasma treatment
특징
제품사양
HIGHLIGHTS AND FEATURES |
Light-weight design aluminum receptacle |
Glass reaction cylinder Ø120mm (DIN 100 ISO-KF compatible) |
Implosion guard and safety monitoring |
Round stage, height-adjustable, and tiltable (Ø80mm) to hold your samples. The table can be easily removed without tools for cleaning purposes. |
Speed-controlled rotary or planetary gear table with different options for holding samples (option) |
Coat-thickness measurement via double-quartz measuring system (small samples at the center, large samples at the edge) |
Wide range power supply (90-260VAC) |
Interface for different process heads with automatic recognition |
5.7“ TFT-Touch graphical display |
Easy creation of coating formulations, which guarantee reproducible results |
Storage/view of the last ten processes |
Feature for automatic flooding of system in the event of power loss. This prevents the system from becoming contaminated with backing pump oil. |
Intuitive user software with many practical features |
Graphical representation of process data with Windows-based Coating LAB software |
Etc.. |
– Flange connection (DN 25 ISO-KF) for connecting an external backing pump (LV version) – Can be used as a pure pumping unit – External alarm output – USB interface for easy analysis and update of software – Automatic valve control for two process gases and venting – 6mm Legris connections for two process gases and a venting gas – Tools for target and quartz replacement – USB service cable – Power supply cable – Various accessories and mounting materials included in scope of delivery |
