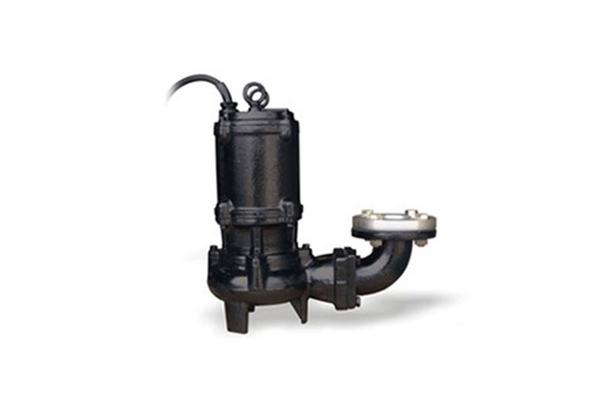

특징
용도
성능 곡선도
표준사양
NO | 모델 (Model) |
구경 Disc(ø) |
동력 | 토출량 Q(㎡/min) |
전양정 Head(m) |
중량 (kg) |
|
---|---|---|---|---|---|---|---|
(HP) | (KW) | ||||||
1 | SH-8V | 50 | 1 | 0.75 | 0.16 | 10 | 33 |
2 | SH-15V | 2 | 1.5 | 0.20 | 13 | 55 | |
3 | SH-22V | 80 | 3 | 2.2 | 0.45 | 12 | 58 |
4 | SH-37V | 5 | 3.7 | 0.45 | 17 | 79 | |
5 | SH-55V | 7.5 | 5.5 | 0.65 | 20 | 85 | |
6 | SH-75V | 100 | 10 | 7.5 | 0.65 | 20 | 130 |
7 | SH-110V | 15 | 11 | 0.85 | 20 | 160 | |
8 | SH-150V | 20 | 15 | 0.95 | 20 | 170 |
구조 단면도
* 외형도
NO | MODEL | A | C | D | øE | H | 중량 (㎏) |
---|---|---|---|---|---|---|---|
1 | SH-8V | 410 | 185 | 185 | 215 | 450 | 33 |
2 | SH-15V | 420 | 210 | 190 | 235 | 470 | 55 |
3 | SH-22V | 440 | 210 | 220 | 235 | 490 | 58 |
4 | SH-37V | 520 | 250 | 250 | 320 | 17620/td> | 79 |
5 | SH-55V | 560 | 250 | 300 | 320 | 620 | 85 |
6 | SH-75V | 580 | 310 | 355 | 320 | 810 | 130 |
7 | SH-110V | 580 | 310 | 355 | 320 | 810 | 160 |
8 | SH-150V | 580 | 310 | 355 | 320 | 810 | 170 |
* 부품도
NO | Part Name | NO | Part Name |
---|---|---|---|
1 | Cable | 11 | Bearing Housing |
2 | Modeling Tube | 12 | Bearing Cover |
3 | Stuffing Box | 13 | Mechanical Seal |
4 | Braket | 14 | Cashing |
5 | Upper Bearing | 15 | Impeller |
6 | Frame | 16 | Flanged Elbow |
7 | Stator | 17 | Opposite Flange |
8 | Rotor | 18 | Guide Support |
9 | Shaft | 19 | Guide Rail |
10 | Lower Bearing | 20 | Guide Hook |
21 | To Band |
