Product Name
Susol DC MCCB & Switch-Disconnector
Model Name
-
Size
-
Weight
-
Product Details

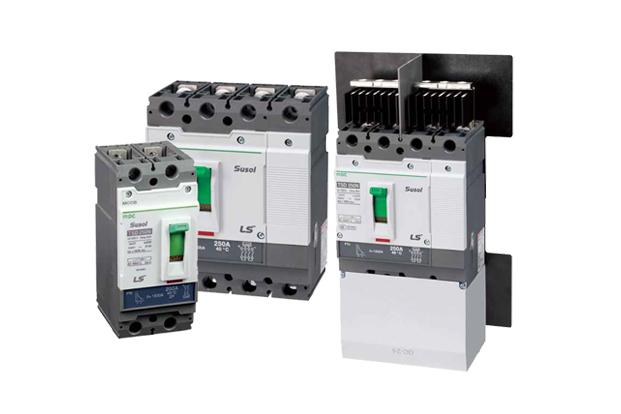

Susol DC MCCB & Switch-Disconnector

Susol DC MCCB & Switch-Disconnector are suitable for DC application such as Photovoltaic Circuit Breaker, UPS and Datacenter.

* Rated current : 16~1600A

* Rated operational voltage : DC 500~1500V

* Rated Short-circuit breaking capacity(Icu) : 20~50kA



Features

◆ Susol DC1500V MCCB(IEC)

ㆍSeries : TSD

ㆍAF : 250AF

ㆍPole : 2P(1000V), 4P(1500V)

ㆍTrip Unit : FTU, DSU

ㆍStandards : IEC 60947-2(3), CCC

◆ Susol DC1500V MCCB(UL&IEC)

ㆍSeries : UTD

ㆍAF : 250AF, 400AF, 600AF

ㆍPole : 4P(1500V)

ㆍTrip Unit : FTU, FMU, DSU

ㆍStandards :UL489, UL498B, IEC60947-2(3), CCC

◆ Susol DC1000V MCCB(IEC)

ㆍSeries : TD, TS

ㆍAF : 100AF, 160AF, 250AF, 400AF, 630AF, 800AF

ㆍPole : 2P(500V), 3P(750V), 4P(1000V)

ㆍTrip Unit : FTU, FMU, ATU

ㆍStandards : IEC60947-2, CCC

 ◆ Susol DC1100V Switch-Disconnector(IEC)

ㆍSeries : TD, TS

ㆍAF : 100AF, 160AF, 250AF, 400AF, 630AF, 800AF, 1600AF

ㆍPole :
   - 160~800AF: 3P(750V), 4P(1100V)
   - 1600AF: 3P(900V), 4P(1150V)

ㆍStandards : IEC60947-3, CCC



Description

Type 160AF 250AF 400AF 630AF 800AF Remark
1500V N - TSD250N 20kA - - - IEC60947-2
H - TSD250H 50kA - - -
E - UTD250E 20kA UTD400E 20kA UTD600E 20kA - UL489, UL489B,
IEC60947-2
N - UTD250N 40kA UTD400N 40kA UTD600N 40kA -
H - UTD250H 50kA UTD400H 50kA UTD600H 50kA -
1000V H TD100H
TD160H
40kA
TS100H
TS160H
TS250H
40kA
TS400H 40kA TS630H 40kA TS800H 40kA IEC60947-2
